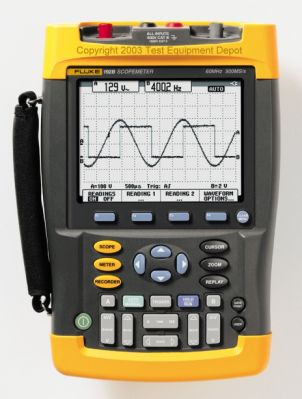

Fluke 199B/M Medical ScopeMeter

Fluke 190 Series Medical ScopeMeter Speed, Performance and Analysis Power for Medical Applications

The Fluke 190 Series Medical ScopeMeters are high-performance oscilloscopes for the most demanding applications when servicing medical imaging equipment and video systems. Based upon the Fluke 190 Series ScopeMeters, the Fluke 190 Series Medical ScopeMeter offers measurement capabilities optimized for servicing medical equipment in the following modalities: X-ray, MRI, Nuclear Medicine and Ultrasound.

mAs Measurement Calculates Current Over Time

Using the cursors, you can now measure directly the amount of radiation produced by X-ray systems, or the total amount of charge applied to a system.

Smart Averaging

Smart averaging gives the averaged waveform over successive acquisitions, reducing noise in the displayed waveform. Thanks to smart averaging, you can now also see an incidental curve of a different waveshape with no effect on the averaged curve! This allows you to see the averaged curve of a sequence of video lines, for example, while still seeing the incidental flyback line flash by! Thanks to smart averaging, the oscilloscope gives an immediate response when the signal makes large changes, for instance when probing around different test points, while retaining the benefits associated with averaging!

Extended Offset

Vertical offset is now extended to a maximum of 16 divisions, allowing vertical zoom-in for study of small details of the signal.

Selectable Persistence

Persistence mode with selectable decay time helps to find anomalies in the waveshape and optimizes the display for color information when working with composite color video. Can be used together with dots only mode, best for modulated signals, or with dot join mode for more continuous and stable waveshapes.

Extended Video Triggering

Next to its triggering capability for standard, interlaced TV signals, the instrument now triggers on high-resolution, non-interlaced video systems. The ScopeMeter 190 will trigger on all lines (non-selective), or can select an individual video line from systems with up to 2800 lines per frame.

MA190 Accessory Kit

The MA190 accessory set enables interconnection of the Fluke 190 for use in the field of Medical Imaging and Video systems. The kit is included in the Fluke 190M as a standard.

The accessory kit includes:

For instruments that have the MS190 Software Extension installed, the full specification for the Fluke ScopeMeter 190 Series applies, with the additions as specified below.
