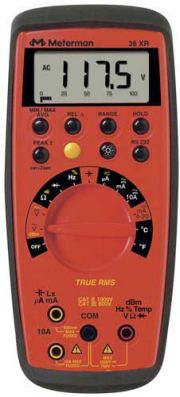

For designing and troubleshooting electronics, industrial automation and control systems, the 38XR deliver the highest safety rating available – CAT IV 600 V and CAT III 1000 V. The features include temperature, capacitance, frequency, 4-20mA loop current percentage, backlight and PC interface.
Features:
- Frequency to 10 MHz, capacitance to 400 μF temperature to 2372 ºF
- Duty cycle, dBm and 4 to20 mA loop current test
- 1000 V/750 V dc/ac True RMS, ac + dc input
- 10 Amps ac/dc, fully safety fused
- Resistance to 40 MΩ
- Continuity beeper
- Min/Max, Average, Relative, Peak, and Data Hold
- Bright blue backlight
- Auto power off to save battery life
- RS232 Output for measurement recording
- Separate door for easy battery and fuse access
- CAT IV 600 V, CAT III 1000 V, highest rating
- Magne-Grip™ Holster with magnetic hanging strap
