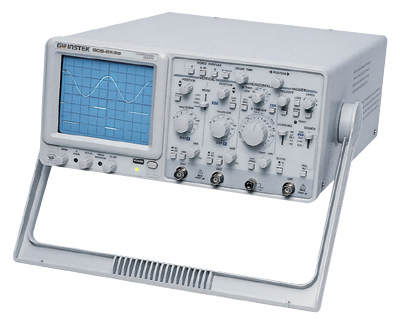

Instek GOS-653G 50MHz Analog Oscilliscope
SKU: GOS-635G
Stock: 0
Stock: 0
Price:
$792.00
The 50MHz GOS-653G/652G Series is an example of classic analog oscilloscope design. The GOS-653G /652G cover a broad range of industry applications, such as product design, assembly lines, repair & servicing, and educational purposes for EE laboratories and class experiments. Coupled with various trigger functions (Auto, Norm, TV), complex waveforms can be easily triggered for use in diverse applications. The ALT Trigger function enables users to observe signals from dual channels simultaneously. The Hold Off function helps stabilize sophisticated signals within repetitive frequencies or periods. Delayed sweep magnification (GOS-653G) can display and zoom in waveforms at the same time. For classic design and operation applicable to a wide range of applications, the GOS-653G/652G Series offers extra value.
Features
* 50MHz Bandwidth, Dual Channel
* Delayed Sweep (GOS-653G)
* Built-In Delay Line (GOS-653G)
* TV Synchronization
* CH1 Output
* Z-Axis Modulation Input
* ALT Triggering Function
* Hold Off Function
* Trigger Level Lock Function
Specifiaction
leading edge can be monitored (GOS-653G only) OUTPUT SIGNAL
CRT
Type
6-inch rectangular type with internal graticule
0%, 10%, 90% and 100% markers.
8 x 10 div (1div=1cm)
Accelerating Potential
12kV
Illumination
Continuously adjustable
Z-axis Input
Input Impedance: Approx. 5kΩ
Sensitivity:Above 3Vp-p
Bandwidth:DC ~ 5MHz
VERTICAL SYSTEM
Sensitivity
5mV ~ 5V/div±3%,1mV ~ 2mV/div±5%
Bandwidth
DC ~ 50MHz
DC ~ 15MHz at 1 ~ 2mV/div
Rise Time
7ns (23.3ns for 1 ~ 2mV/div)
Signal Delay
Input Impedance
Approx. 1MΩ
Input Coupling
AC, DC, GND
Vertical Mode
CH1, CH2, DUAL, ADD, CH2 INV
(Dual automatic switching ALT and CHOP)
HORIZONTAL SYSTEM
A(main) Sweep Time
0.1μs ~ 0.5s/div ±3%
100ns ~ 50ms/div ±5% (x 10 MAG)
10ns ~ 50ns ±8% (x 10 MAG)
B(delay) Sweep Time
0.1μs ~ 0.5ms/div ±3%
100ns ~ 50μs/div ±5% (x 10 MAG)
10ns ~ 50ns/div ±8% (x 10 MAG)
Delay Time
1μs ~ 5ms/div ±5% (GOS-653G only)
Delay Time Jitter
Better than 1:10000 (GOS-653G only)
TRIGGER
Trigger Mode
AUTO, NORM, SINGLE
Trigger Source
CH1, CH2, ALT, LINE, EXT
Trigger Coupling
AC, DC, HF REJ, TV
Trigger Slope
"+" or "-"
X-Y OPERATION
Sensitivity
5mV ~ 5V/div±4%
X-axis Bandwidth
DC ~ 2MHz
Phase Error
3° or less from DC ~ 100kHz
Ch1 Signal Output
Voltage: approx. 50mV/div into 50Ω
Calibrator Output
1kHz Square wave, 2Vpp±2%
POWER SOURCE
AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz
DIMENSIONS & WEIGHT
310(W) x 150(H) x 455(D) mm; Approx. 8.2kg
