Features:

• oscilloscope:
  • time base: 20ns to 100ms per division
  • trigger source: CH1, CH2, EXT or free run
  • trigger edge: rising or falling
  • trigger level: full-screen adjustable
  • step interpolation: linear or smoothed
  • markers for: voltage and frequency
  • input range : 5mV to 2V/division
  • input sensitivity: 0.15mV display resolution
  • auto set-up function and X10 option
  • pre-trigger function
  • readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency…
  • recording length: 4K samples / channel
  • real time sampling frequency: 1.25kHz to 50MHz
  • sampling frequency for Repetitive signals: 1GHz
• spectrum analyzer:
  • frequency range: 0...1.2kHz to 25MHz
  • linear or logarithmic time scale
  • operating principle: FFT (Fast Fourier Transform)
  • FFT resolution: 2048 lines
  • FFT input channel: CH1 or CH2
  • zoom function
  • markers for amplitude and frequency
• transient recorder:
  • time scale: 20ms/div to 2000s/div
  • max. recording time: 9.4hours/screen
  • automatic data storage
  • automatic recording for more than 1 year
  • max. number of samples: 100/s
  • min. number of samples: 1 sample / 20s
  • markers for time and amplitude
  • recording and display of screens recording and display of screens

Specifications:

• general information:
  • inputs: 2 channels, 1 external trigger input
  • input impedance: 1Mohm // 30pF
  • bandwidth: DC to 60 MHz ±3dB
  • max. input voltage: 30V (AC + DC)
  • input coupling: DC, AC and GND
  • Supply from USB port (500mA)
• minimum system requirements:
  • IBM compatible PC
  • needs Win98SE or higher
  • SVGA display card (min. 800x600, 1024x768 recommended)
  • mouse
  • USB port 1.1 or 2.0 compatible
  • CD Rom player
• includes:

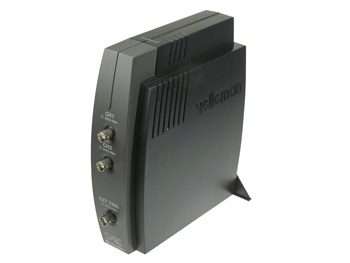

  • USB PC oscilloscope
  • 2 x 60MHz scope probe
  • USB cable
  • software on CD
  • getting started manual
  • translations on CD
