Features

• 40MHz sampling rate
• 12MHz analog bandwidth
• 0.1mV sensitivity
• 5mV to 20V/div in 12 steps
• 50ns to 1hour/div time base in 34 steps
• Ultra fast full auto set up option
• adjustable trigger level
• X and Y position signal shift
• DVM readout
• audio power calculation (rms and peak) in 2, 4, 8, 16 & 32 ohm
• dBm, dBV, DC, rms ...measurements
• signal markers for Volt and Time
• frequency readout (through markers)
• recorder function (roll mode)
• signal storage (2 memories)
• high resolution LCD 192x112 pixels
• LCD backlight
• galvanically separated USB output for PC
• data or bitmap download to PC
• different screen modes
  • normal screen view
  • wide screen with DVM
  • normal screen with large DVM
  • wide screen with large DVM
• USB PC Connection real-time and screen capture
• includes:
  • worldwide charging adaptor
  • insulated measurement probe x1 / x10: PROBE60S
  • USB cable

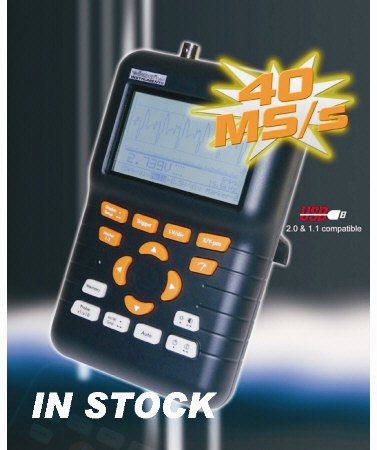

  • Handheld Personal Scope

Specifications

• power supply:
  • Li-ion battery: 7.4V / 1050mAh
• weight: 15.52oz.
• dimensions: 4.3 x 6.9 x 1.6"
