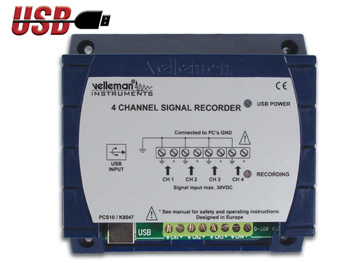

VELLEMAN PCS10 - 4-CHANNEL RECORDER - LOGGER

SKU: PCS10
Stock: 0
Price:
$69.95

Qty: - +
   - OR -

Features:

  • record DC signals or slow-moving signals over very long periods
  • the measurements are automatically stored on your hard disk for further processing
  • thanks to the USB connection no power supply is necessary and installation is easy and straightforward
  • signals are instantly displayed on the PC screen using an analogue or DVM display
  • USB cable included
  • PC-LAB2000 Software included
  • also available in kit version: K8047

 Specifications:

  • hardware:
    • USB connected and powered
    • four DC-coupled input channels
    • input resistance: 1Mohm
    • maximum samples per second: 100
    • four input ranges: 3V / 6V / 15V and 30V
    • sensitivity: 10mV
    • accuracy: ±3% of full scale
    • maximum input: 30Vdc
    • power and recording/diagnostic LED
  • software:
    • analogue trace or DVM readout
    • 4 channels record simultaneously
    • minimum / maximum sample hold function for DVM
    • from 1 sec to 1000 sec per division
    • storage and recall of screens (full colour) or data
    • automatic recording option for long recordings
    • on screen markers for time and voltage
    • DLL included for your own developments
  • system requirements:
    • PC, running Win98SE or higher (does not work on WinNT or Win95)
    • free USB port
    • mouse
    • CD-ROM player
