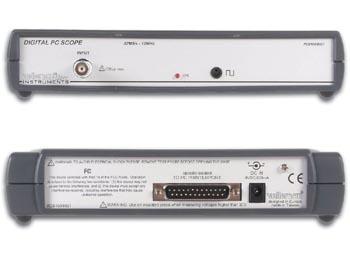

PCS100AU VELLEMAN DIGITAL PC-SCOPE 12MHz 1 CHANNEL OSCILLOSCOPE WITH ADAPTER (110V)

SKU: PCS100AU
Stock: 0
Price:
$139.95

Qty: - +
   - OR -

Its operation is just like a normal oscilloscope. Connection is through the computer's parallel port, the scope is completely optically isolated from the computer port.
Features
  • comes with adapter: yes (110V)
  • general:
  • 1 channel
  • input impedance: 1Mohm / 30pF
  • frequency response: 0Hz to 12MHz (± 3dB)
  • step markers for voltage, time and frequency
  • vertical resolution: 8 bit
  • auto setup function
  • optically isolated from computer
  • record and display of screens & data
  • supply voltage: 9 - 10V DC / 500mA
  • dimensions: 9" x 6.5" x 1.8"
  • weight: 14oz
  • minimum system requirements:
  • IBM compatible PC
  • Windows 95, 98, ME, (Win2000 or NT possible)
  • SVGA display card (min. 800x600)
  • mouse
  • free printer port LPT1, LPT2 or LPT3
  • CD Rom player
  • options:
  • soft carry case: GIB
  • -: -
  • comes with: 1 insulated measurement probe x1 / x10 (PROBE60S)

Specifications
  • oscilloscope:
    • timebase: 0.1µs to 100ms per division
    • trigger source: CH1 or free run
    • trigger level: adjustable per ½ division
    • input sensitivity: 10mV to 3V per division
    • record length: 4096 samples
    • sampling frequency: 800Hz to 32MHz (Real time)
    • true RMS readout (only AC component)
  • transient recorder:
    • timescale: 20ms/div to 2000s/div
    • max record time: 9.4hour/screen
    • automatic storage of data
    • automatic recording for more than 1 year
    • markers for time and amplitude
    • zoom function
  • spectrum analyzer:
    • frequency range: 0 .. 400Hz to 16MHz
    • linear or logarithmic timescale
    • zoom function
