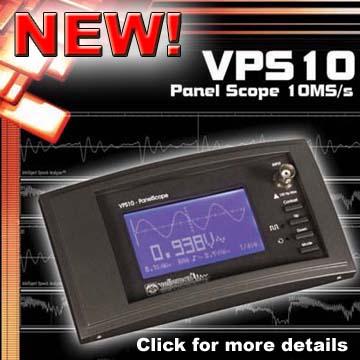

VPS10 PANEL MOUNT DIGITAL SCOPE 10MS/s

Features:

• panel mount
• high-contrast backlight LCD
• full auto set up
• recorder roll mode
• user-friendly set-up menu
• measurements: rms, dB(rel), dBV, dBm
• Direct Audio power measurements
• x1 and x10 probe calculation
• 6 display modes

Specifications:

• input impedance: 1Mohm / 30pF
• connection of internal or external signal
• bandwidth: 2MHz
• sampling: 10MS/s
• 128 x 64 pixels LCD white backlight
• vertical resolution: 8 bit
• max. sensitivity: 0.1mV
• DVM readout
• AC or DC input coupling
• power supply: 9-13VDC or 6VAC / 300mA
• dimensions: 6.5" x 3.5", depth 1.4"
