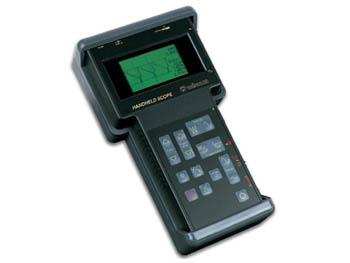

VELLEMAN K7105 - HANDHELD LCD OSCILLOSCOPE

Its high-contrast, wide viewing angle LCD screen enables operation under normal daylight conditions. All functions are accessible by means of a tactile keyboard with a pleasant touch feeling.

The current operating mode is displayed on-screen. If desired, auto-setup mode takes care of all scope settings for instant visualisation of waveforms.

The marker function enables you to make accurate measurements of voltage, time and frequency.

Acting as a DVM, it displays True rms, dB, peak-to-peak and DC volts. With its built-in variable gain sine generator, it allows easy service of audio equipment, etc.…

Probe transient response can be adjusted using the calibration output. Finally, a RS232 port enables screen data to be sent to a PC for use in different applications. A charge circuit with indicator LED for rechargeable batteries is provided.

Features:

• true RMS or peak to peak readout
• dB measurements
• markers for voltage and time
• auto setup function
• DC readout with zero reference function
• frequency readout through markers
• dot join function
• screen hold function
• grid or ruler function
• adjustable trigger level
• trigger mode: normal, auto or single
• trigger edge: rising or falling
• waveform memory (1 location only)
• RS232 data output to computer
• auto power off (can be disabled)

 Specifications:

• maximum sample rate for repetitive signals: 5MHz
• maximum sample rate for single shot events: 0.5MHz
• input impedance: 1Mohm // 20pF
• maximum input voltage: 100Vp (AC + DC)
• input coupling: DC, AC and GND
• vertical resolution: 8 bit (6 bits displayed on LCD)
• dB range: -73dB to +40dB
• linearity: 1 bit (of 8 bit data)
• LCD: 64 x 128 pixels
• timebase: 2µs to 20s / div in 22 steps
• input sensitivity: 5mV to 20V / div in 12 steps
• sinewave generator: 400Hz / 1Vrms // 1Kohm (adjustable)
• square wave output: 400Hz 3.5Vpp
• power supply: 9VDC / 300mA
• rechargeable battery: 6 x type AA / 800mAh
• charging current: 90mA
• charging time: 14 hours
• autonomy: 5 hours
• operating temperature: 0 to 50°C (32 to 122°F)
• dimensions: 130 x 230 x 43mm (5.1" x 9.1" x 1.7")
• options:
  • isolated probe: PROBE60S
  • AC adapter: PSU443
• Product format: SELF-ASSEMBLY electronic kit
