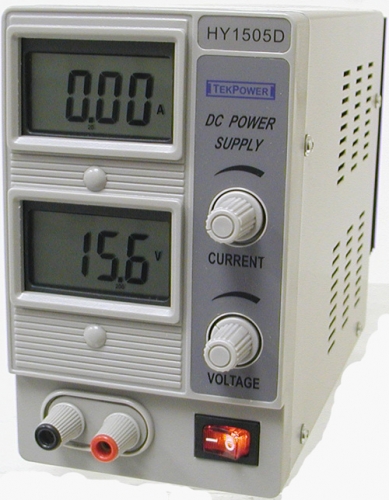

HY-1505D Variable Single output DC Power Supply

Specifications:

• Output Voltage : 0- 15V @ 5A

• Output Current :0-5 A

• Input Voltage: 110V/60Hz.( Special order for 220V/50Hz)

• Constant voltage/ Constant Current

• Voltage  and Current adjustment

• Power effect: CV<0.01%+1mV, CC<0.2% + 1mA

• Overload effect: CV<0.01% +3mV, CC<0.2% +3mA

• Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s

• Protection: High current limited.

• Ripple & Noise: <1mV rms

• Digital Voltage and current meters built in with Voltage resolution:  2.5% of display reading; 2.5% of Current resolution: display reading

• Back light for dark use.

• Environmental : 0 - 102 F ( 0 -40 C), relative humidity: <90%

• 1 years warranty
  Size: (mm) 230 X 160 X 95  (inches) 9X6.8x3.7; Weight: (Lbs)  15.50

• This one is 110V input switch.
