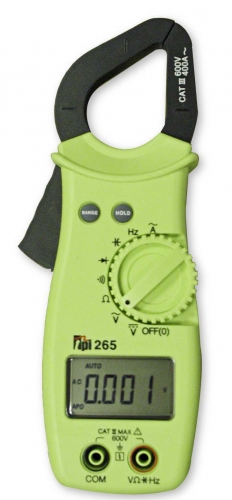

TPI 265 Clamp-On Meter 400A AC Range - Capacitance - Frequency
SKU: TPI 265
Stock: 0
Stock: 0
Price:
$71.95
Features:
- Slim jaw and body means Safe and easy to use in crowded electrical panels
- Capacitance equals Measure motor run and start capacitors
- 0.1 millivolt DC resolution BenefitAccurately measure thermocouples
- Auto power off Increases battery life by turning off the tester when not in use.
- Frequency can Measure and adjust variable speed drives
- AC/DC volts up to 600V and AC amps up to 400 means Enough range to safely perform measurements
- CAT III 600V rated BenefitSafety for the operator and meter.
- Diode, resistance, and audible continuity
- 4000 count display
- Auto / Manual ranging
- Data hold
265 Specifications
DC Voltage
Max Range:600V
Max Resolution:0.1mV
Basic Accuracy: 0.3%
AC Voltage
Max Range:600V
Max Resolution:0.1mV
Basic Accuracy: 1.5%
DC Amps
N/A
DC Microamps
N/A
AC Amps
Max Range:400A
Max Resolution:0.1A
Basic Accuracy: 3%
Resistance
Max Range:40MΩ
Max Resolution:0.1Ω
Basic Accuracy: 0.8%
Frequency
Max Range:40MHz
Max Resolution:1Hz
Basic Accuracy: 0.5%
Capacitance
Max Range:4mF
Max Resolution:0.001nF
Basic Accuracy: 3%
Temperature
N/A
Non-Contact Voltage (NCV)
N/A
Continuity Buzzer
<35Ω
Diode Test
1.5mA Max
True RMS Response
No
Peak Hold
No
Relative Mode
No
Min/Max Record
No
Data Hold
Yes
% Total Harmonic Distortion
No
Range Selection
Auto / Manual
Display Type
4000 count LCD with analog bargraph
Operating Temperature
32°F to 113°F
Relative Humidity
80% non-condensing
Storage Temperature
-4°F to 140°F
Battery Type
9V (MN1604)
Battery Life
80hrs typical
Auto Off / Sleep Mode
Yes
Dimensions (H x L x W)
1.3” x 10” x 2.5”
Weight
0.8lb
Agency Approval
CE IEC 61010: CAT III, 600V
cULus 61010
265 Applications
Test start and run capacitors
Measure motor run current
Measure heat anticipator current
Determine thermocouple voltage
Test line and control voltage
Measure heating element resistance
Measure and adjust variable frequency d
1. How does the non-contact voltage feature of the TPI 270 and 275 benefit me? The non-contact feature of the TPI 270 and 275 allows you to detect live circuits without using the test leads, which enables faster checks for the presence of voltage. 2. Which of the TPI clamp-on meters will measure temperature? The 270 and 275 have this feature built in and the 255, 265, and 291 can measure temperature by using the optional A301 or a A312 K-type thermocouple adapters. 3. Which TPI clamp-ons can measure DC microamps? The TPI 270 and 275 has the capability to measure DC microamps by using the test leads. This is very useful for making flame safety control current measurements. The 265 can measure DC microamps with the optional A213 adapter. 4. Does a clamp-on meter measure anything besides amps? All TPI clamp-on meters measure AC/DC volts and resistance. Models are available with temperature, frequency, capacitance, and non-contact voltage detection capability as well as many other features. Various adapters including temperature (A301 or A312), carbon monoxide (A771), and pressure (A620/630) are available. Contact TPI for additional information. 5. Is it possible to measure AC amps on a device that uses a power cord? Yes, to accomplish this you can use the TPI line splitter (A202). AC amps must be measured by isolating a single wire and the A202 line splitter does this without damaging the power cord.
CLAMP-On FAQs
