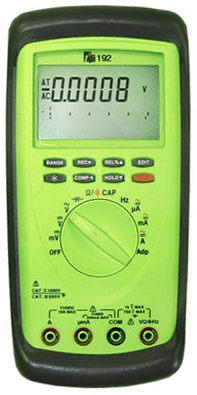

TPI 192 Data logging - 50,000 count - True RMS DMM
SKU: TPI 192
Stock: 0
Stock: 0
Price:
$206.95
| 192 Specifications | |
|---|---|
| DC Volts | Maximum Input: 1000V Maximum Resolution: 0.001mV Accuracy: +/-0.05% |
| AC Volts | Maximum Input: 1000V Maximum Resolution: 100mV Accuracy: +/-0.4% |
| DC Amps | Maximum Input: 10A Maximum Resolution: 0.01mA Accuracy: +/-0.15% |
| AC Amps | Maximum Input: 10A Maximum Resolution: 0.01mA Accuracy: +/-0.75% |
| Resistance (Ohms) | Maximum Input: 50MΩ Maximum Resolution: 1mΩ Accuracy: +/-0.05% |
| Frequency | Maximum Input: 5MHz Maximum Resolution: 0.001Hz Accuracy: +/-0.05% |
| Capacitance | Maximum Input: 20mF Maximum Resolution: 0.01nF Accuracy: +/-2% |
| Inductance | Maximum Input: 300mH Maximum Resolution: 0.01mH Accuracy: +/-5% |
| Temperature (K-Type Thermocouple) | Maximum Input: -54°F to 2462°F (-50°C to 1350°C) Maximum Resolution: 0.1°F / °C Accuracy: +/-2% |
| Continuity | Audible at less than 10Ω |
| Diode | 3V at 1mA maximum output |
| Duty Cycle | Maximum Input: 99.9% Maximum Resolution: 0.1% |
| True RMS Responding | Yes |
| Conductance | Yes |
| Pulse Width | Yes |
| Data Hold | Yes (Two hold system) |
| Min/Max Record | Yes |
| Time Stamp Logging | Yes |
| Relative Mode | Yes |
| Compare Mode | Yes |
| RS-232 Output | Yes, Optically Isolated |
| Process Loop Output | No |
| Sleep Mode / Auto Off | Yes |
| Protective Boot | Yes (standard) |
| Display Type | 50,000 count backlit LCD with dual sub displays and analog bargraph |
| Range Selection | Auto / Manual |
| Operating Temperature | 32°F to 113°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 80% non-condensing |
| Size | 8.3” x 3.7” x 1.9” (210mm x 95mm x 47mm) without boot 8.7” x 4.3” x 2.6 (220mm x 110mm x 65mm) with boot |
| Weight | 1.3lbs (570g) without boot 1.9lbs (850g) with boot |
| Battery Type | 9V Alkaline (NEDA 1604) |
| Battery Life | 50hrs Typical |
| Overvoltage Category | CAT III 600V |
| Agency Approval | cULus 61010-1, IEC 61010-1 |
| Warranty | Limited Lifetime |
| 192 Applications |
|---|
| Thermocouples in furnaces or gas applications |
| Heat anticipator current in thermostats |
| Line voltage |
| Control circuit voltage |
| Flame safeguard control current |
| Heating element resistance (continuity) |
| Compressor winding resistance |
| Contactor and relay coil resistance |
| Continuity of wiring |
| Motor start and run capacitance |
| Frequency on controls and line voltages |
| Record min/max voltage of controls and line voltages |
| Temperature with optional temperature adapter (A310) |
| Bar graph to indicate rapid fluctuations in measurements |
| Voltage of direct drive DC motors |
| Measure power supply voltage |
| Match components |
| Compare readings in circuits and components |
| Frequency of line and control voltage |
| DMMs FAQs | |
|---|---|
|
1. Is there a way to measure higher current with a TPI DMM? TPI DMMs (except the 120 and 126) have the capacity to read up to 10A AC/DC. Optional adapters are available for all models to increase the current range. Our shunt adapters are available to increase the range up to 1,000A AC/DC. 2. What other adapters are available for TPI DMMs? Various adapters including carbon monoxide (A771), pressure (A620/630), and clamp-on low current (A254) are available. Contact TPI for additional information. 3. Which of the TPI DMMs will measure temperature? All TPI DMMs can measure temperature by using the optional A301 K-Type thermocouple temperature adapter. 4. Which TPI DMMs can measure DC millivolts? All TPI DMMs measure millivolts. Models are available with 1 or 0.1 millivolt resolution. 5. Which TPI DMMs can measure DC microamps? The TPI 126, 133, 135, 153, 163, 183, 190, 194, 196, and 440 all have this capability. 6. Which TPI DMMs will measure capacitance? The TPI 135, 183, 190, 192, 194, and 440 all have this capability. 7. What is continuity? Continuity refers to a test performed on wires and circuits to see if a break(open) exhists. If the wire or circuit is continuous, the resistance reading will be at or near zero. The continuity range on a meter provides audible indication of a continuous circuit, allowing quicker tests without having to take your eyes off the circuit or wire under test. |
