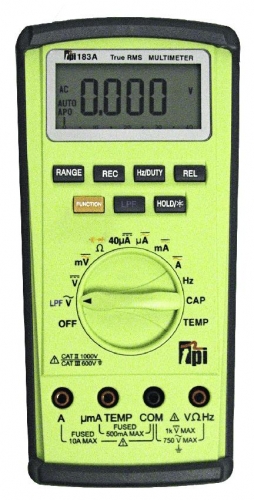

TPI 183A True RMS DMM with capacitance - low-pass filter - duty cycle - and temperature
SKU: TPI 183A
Stock: 0
Stock: 0
Price:
$143.95
| 183 Specifications | |
|---|---|
| DC Volts | Maximum Input: 1000V Maximum Resolution: 0.1mV Accuracy: +/-0.3% |
| AC Volts | Maximum Input: 750V Maximum Resolution: 0.001V Accuracy: +/-0.75% |
| DC Amps | Maximum Input: 10A Maximum Resolution: 0.1µA Accuracy: +/-0.5% |
| AC Amps | Maximum Input: 10A Maximum Resolution: 0.1µA Accuracy: +/-0.75% |
| Resistance (Ohms) | Maximum Input: 40MΩ Maximum Resolution: 0.1Ω Accuracy: +/-0.5% |
| Frequency | Maximum Input: 200KHz Maximum Resolution: 0.01Hz Accuracy: +/-0.05% |
| Capacitance | Maximum Input: 10000µF Maximum Resolution: 0.01µF Accuracy: +/-2% |
| Inductance | N/A |
| Temperature (K-Type Thermocouple) | N/A |
| Continuity | Audible at less than 100Ω |
| Diode | 3V at 2.5mA maximum output |
| Duty Cycle | N/A |
| True RMS Responding | Yes |
| Conductance | No |
| Pulse Width | No |
| Data Hold | Yes, 2 hold system |
| Min/Max Record | Yes |
| Time Stamp Logging | No |
| Relative Mode | Yes |
| Compare Mode | Yes |
| RS-232 Output | Yes |
| Process Loop Output | No |
| Sleep Mode / Auto Off | Yes |
| Protective Boot | Yes (standard) |
| Display Type | 4,000 count backlit LCD with dual sub displays and analog bargraph |
| Range Selection | Auto / Manual |
| Operating Temperature | 32°F to 113°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 80% non-condensing |
| Size | 7.4” x 3.4” x 1.2” (187mm x 86mm x 33mm) with boot |
| Weight | 14.4oz (380g) with boot |
| Battery Type | 9V Alkaline (NEDA 1604) |
| Battery Life | 100hrs Typical |
| Overvoltage Category | CAT III 600V |
| Agency Approval | cULus 61010-1, IEC 61010-1 |
| Warranty | 3 Years |
| 183 Applications |
|---|
| Thermocouples in furnaces or gas applications |
| Heat anticipator current in thermostats |
| Line voltage |
| Control circuit voltage |
| Flame safeguard control current |
| Heating element resistance (continuity) |
| Compressor winding resistance |
| Contactor and relay coil resistance |
| Continuity of wiring |
| Motor start and run capacitance |
| Frequency on controls and line voltages |
| Record min/max voltage of controls and line voltages |
| Temperature with optional temperature adapter (A310) |
| Bar graph to indicate rapid fluctuations in measurements |
| Voltage of direct drive DC motors |
| Measure power supply voltage |
| Match components |
| Compare readings in circuits and components |
| Frequency of line and control voltage |
| DMMs FAQs | |
|---|---|
|
1. Is there a way to measure higher current with a TPI DMM? TPI DMMs (except the 120 and 126) have the capacity to read up to 10A AC/DC. Optional adapters are available for all models to increase the current range. Our shunt adapters are available to increase the range up to 1,000A AC/DC. 2. What other adapters are available for TPI DMMs? Various adapters including carbon monoxide (A771), pressure (A620/630), and clamp-on low current (A254) are available. Contact TPI for additional information. 3. Which of the TPI DMMs will measure temperature? All TPI DMMs can measure temperature by using the optional A301 K-Type thermocouple temperature adapter. 4. Which TPI DMMs can measure DC millivolts? All TPI DMMs measure millivolts. Models are available with 1 or 0.1 millivolt resolution. 5. Which TPI DMMs can measure DC microamps? The TPI 126, 133, 135, 153, 163, 183, 190, 194, 196, and 440 all have this capability. 6. Which TPI DMMs will measure capacitance? The TPI 135, 183, 190, 192, 194, and 440 all have this capability. 7. What is continuity? Continuity refers to a test performed on wires and circuits to see if a break(open) exhists. If the wire or circuit is continuous, the resistance reading will be at or near zero. The continuity range on a meter provides audible indication of a continuous circuit, allowing quicker tests without having to take your eyes off the circuit or wire under test. |
