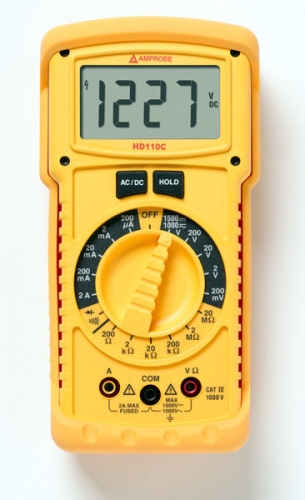

Amprobe HD110C Heavy-Duty Digital Multimeter

SKU: HD110C
Stock: -3
Price: $209.99
$189.97

Qty: - +
   - OR -

 Features



  • Highest voltage capability, measuring to 1500 V dc and 1000 V ac
  • CAT IV 1000 V rated
  • Special sealing for environment and water resistance. IP67 rated
  • Constructed with drop-resistant housing and PCB mounting
  • Magne-Grip™ holster, frees both hands for work
  • Includes high voltage test leads with threaded alligator clips
  • Display 3-1/2 digit LCD, 1999 counts, with annunciators
  • Automatic Polarity Indication
  • Low Battery Indication
  • Standard 9 V battery
  • Flame retardant, high-impact thermoplastic Case
  • Resistance Ranges 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20

  • Included Accessories

    • 1 - Manual
    • 1 - Carrying case
    • 1 - Magne-Grip™ Holster
    • 1 - Heavy-Duty test leads with threaded alligator clips




    Specifications

    General Specifications
    Display 3-1/2 digit LCD, 1999 counts, with annunciators and menu features
    Polarity Indication Automatic
    Input overload indication 1
    Low Battery Indication < 50 hours battery life remain, accuracy is no longer guaranteed
    Display Update Rate 2.5/sec, nominal
    Oper. Temp. 0 °C to +50 °C, (< 75 % R.H.)
    Storage Temp -20 °C to 60 °C, 0 to 80 % RH, battery removed
    Temperature coefficient 0.1 x (spec. accuracy)/°C (0 ° to 18 °C and 28° to 50 °C) all functions and ranges except for mVDC
    0.3 x (spec. accuracy)/°C (0 ° to 18 °C and 28° to 50 °C) for mVDC
    Altitude Up to 2000 m — indoor use
    Fuse F 2 A/1500 V fuse (8 mm x 65 mm), I.R. 30 kA – Amprobe p/n FP700
    Power Standard 9 V battery, NEDA 1604, JIS 006P,IEC 6F22
    Auto Power-Down Meter powers down after approx. 30 min. of inactivity.
    Battery Life 250 hours typical with carbon-zinc, 500 hours typical with alkaline
    Dimensions, with holster (H x W x D) 200 x 102 x 59 mm (7.9 in x 4.0 in x 2.3 in)
    Weight (incl. battery) 642 g (20 oz)
    Accessories Heavy Duty CAT IV 1000 V Test leads with threaded alligator clips (TL1500), battery (in instrument), hex wrench in holster, Magne-Grip flex strap and User Manual
    Case material Flame retardant, high-impact thermoplastic
    Safety Meets EN 61010-1 CAT IV 1000 V (1500 V DC max) Class II, EN 60529:IP67
    EMC Meets EN 61326-1
    DC Volts Ranges 200 mV, 2 V, 20 V, 200 V, 1500 V
    DC Volts Resolution 0.1 mV
    DC Volts Accuracy All ranges ±(0.1 % rdg+2 dgts)
    DC Volts Input Impedance 10 MÙ
    DC Volts OL Protection 1500 V dc/1000 V ac rms
    DC Volts Transient Protection 12 kV impulse (1.2 ìS/50 ìS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV
    AC Volts (45 Hz to 2 kHz) Ranges 200 mV, 2 V, 20 V, 200 V, 1000 V
    AC Volts (45 Hz to 2 kHz) Resolution 0.1 mV
    AC Volts (45 Hz to 2 kHz) Accuracy 200 mV to 200 V (45-500 Hz) ±(0.8 % rdg+4 dgts),
    AC Volts (45 Hz to 2 kHz) Accuracy 200 mV to 200 V (500 Hz-2 kHz) ±(1.5 % rdg+5 dgts)
    AC Volts (45 Hz to 2 kHz) Accuracy 1000 V (50-60 Hz) ±(0.8 % rdg+4 dgts)
    AC Volts (45 Hz to 2 kHz) Accuracy 1000 V (60-500 Hz) ±(1.5 % rdg+5 dgts)
    AC Volts (45 Hz to 2 kHz) Input Impedance 10 MÙ
    AC Volts (45 Hz to 2 kHz) OL Protection 1500 V dc/1000 V ac rms
    AC Volts (45 Hz to 2 kHz) Transient Protection 12 kV impulse (1.2 ìS/50 ìS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV.
    DC Current Ranges 200 ìA, 2 mA, 20 mA, 200 mA, 2 A
    DC Current Resolution 0.1 ìA
    DC Current Accuracy 200 ìA to 20 mA ±(0.5 % rdg+2 dgts)
    DC Current Accuracy 200 mA to 2 A ±(1.0 % rdg+2 dgts)
    DC Current Voltage Burden 250 mV max. (1 mV/1 ìA on 200 ìA Range)
    DC Current Voltage Burden 100 mV/1 mA on 2 mA Range)
    DC Current Voltage Burden (10 mV/1 mA on 20 mA Range)
    DC Current Voltage Burden (1.5 mV/1 mA on 200 mA Range)
    DC Current Voltage Burden (500 mV/1 A on 2 A Range)
    DC Current OL Protection A Input (F 2 A/1500 V, size 8 x 65 mm IR fast blow ceramic) (FP 700)
