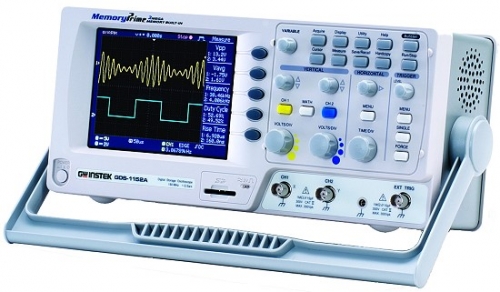

Instek GDS-1102A-U 100 MHz Digital Storage Oscilloscope

SKU: GDS-1102A-U
Stock: 0
Price: $805.86
$499.00

Qty: - +
   - OR -

Description


GDS-1000A Series is a general purpose 2- channel oscilloscope and originally designed to meet educational and industrial requirements without specializing in DSO features. This series provides three selective bandwidths of 60MHz, 100MHz and 150MHz together with innovative human machine interface design plus an TFT color LCD display, users will enjoy better measurement experience!

GDS-1000A series offers dual sampling mode, giving users two options for 1GSa/s Real-Time sampling or 25GSa/s high-speed Equivalent sampling rate. What's more, with high-speed wave handling capability, more advanced triggering functions, and 2.5 kg light-weight design, it is a powerful functional oscilloscope with the best price than ever. Ultimately, GDS-1000A series is considered for the replacement of analog oscilloscope and further promoted as a personal DSO affordable to any situation such as each student in educational labs, service technicians, or industrial field needing big quantity.

Besides, the requirement of measuring data exchange and analysis is intergraded into the GDS-1000A series. The convenient PC standard interface is also available, such as USB interface and SD card socket. This two build-in standard interface capability enable the performance of remote control or data transferring to a desktop/laptop for documenting purpose and enhance your work efficiency.

Easy to use

Several acquisition mode and 27 auto measurement functions help user to measure the accurate property of waveforms. The advanced auto-set function makes GDS- 1000A Series catch waveform automatically and display waveform quickly. With arithmetic functions, FFT function keeps user being aware of the results by updating value immediately. Without almost extracalculation GDS-1000A series can provide sufficient information of testing.

SD Card & USB Device supported

A total of 15 waveforms could be saved into the internal memory for later recall and display, and 2 saved reference waveforms plus 2 live waveforms could be shown on the screen at the same time for comparison. SD card mass storage and USB device port are supported, providing storage/transfer of measurement data and remote control for diversified solutions.



Specifications

VERTICAL
Channels 2
Bandwidth DC~100MHz(-3dB)
Rise Time <3.5ns Approx.
Sensitivity 2mV/div ~ 10V/div (1-2-5 increments)
Accuracy ±(3% x |Readout| + 0.1 div + 1mV)
Input Coupling AC, DC & Ground
Input Impedance MΩ±2%, ~15pF
Polarity Normal & Invert
Maximum Input 300V (DC+AC peak), CATII
Waveform Signal Process + , - , x, FFT, FFTrms
Offset Range 2mV/div ~ 50mV/div: ±0.4V
100mV/div ~ 500mV/div: ±4V
1V/div ~ 5V/div: ±40V
10V/div: ±300V
Bandwidth Limit 20MHz (-3dB)
TRIGGER
Sources CH1 , CH2 , Line , EXT
Modes Auto, Normal, Single, TV, Edge, Pulse Width
Coupling AC , DC , LF rej. , HF rej. , Noise rej.
Sensitivity DC ~ 25MHz: Approx. 0.5div or 5mV;
25MHz ~ 100MHz: Approx. 1.5div or 15mV
EXT TRIGGER
Range ±15V
Sensitivity DC ~ 25MHz : ~ 50mV ; 25M ~ 100MHz : ~100mV
Input Impedance 1MΩ±2% , ~ 15pF
Maximum Input 300V (DC AC peak) , CATII
HORIZONTAL
Range 1ns/div ~ 50s/div (1-2-5 increments); ROLL : 250ms/div ~ 50s/div
Modes Main, Window, Window Zoom, Roll, X-Y
Accuracy ±0.01%
Pre-Trigger 10 div maximum
Post-Trigger 1000 div
X-Y MODE
X-Axis Input Channel 1
Y-Axis Input Channel 2
Phase Shift ±3°at 100kHz
SIGNAL ACQUISITION
Real-Time Sample Rate 1GSa/s maximum
Equivalent Sample Rate 25GSa/s maximum
Vertical Resolution 8 Bits
2Mega Points maximum
Acquisition Mode Normal, Peak Detect, Average
Peak Detection 10ns (500ns/div ~ 10s/div)
Average < 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
CURSORS AND MEASUREMENT
Voltage Measurement Vpp ,Vamp ,Vavg ,Vrms ,Vhi ,Vlo ,Vmax ,Vmin ,Rise Preshoot/Overshoot,Fall Preshoot/Overshoot
Time Measurement Freq ,Period ,Rise Time ,Fall Time ,Positive Width ,Negative Width ,Duty Cycle
Cursors Measurement Voltage difference between cursors (V)
Time difference between cursors (T)
Auto Counter Resolution : 6 digits
Accuracy: 2%
Signal Source: All available trigger source except the Video trigger mode
ADJUSTABLE PROBE COMPENSATION SIGNAL
Frequency Range 1kHz ~ 100kHz, 1kHz/STEP
Duty Cycle Range 5% ~ 95%, 5%/STEP
CONTROL PANEL FUNCTION
Autoset Adjust Vertical VOLT/DIV, Horizontal TIME/DIV, and Trigger level automatically
Save Setup Up to 15 sets of measurement conditions
Save Waveform 15 sets of waveform
DISPLAY
TFT LCD Type 5.6 inch
Display Resolution 234(Vertically) x 320(Horizontally) Dots
Display Graticule 8 x 10 divisions
Display Brightness Adjustable
INTERFACE
USB Slave Connector USB1.1 & 2.0 full speed compatible(printers and flash disk not supported)
SD Card Slot Image (BMP), waveform data (CSV), and setup (SET)
POWER SOURCE
Line Voltage Range AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
MISCELLANEOUS
Multi-Language Menu Available
Onscreen Help Available
ACCESSORIES
User manual x 1
Power Cord x 1
GTP-100A-4 Probe(10:1/1:1) x 2
DIMENSIONS &WEIGHT
310(W) x 142 (H) x 140(D)mm, Approx. 2.5kg
