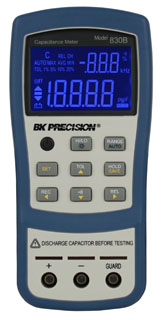

BK 830B Dual Display Capacitance Meter to 200 mF

SKU: BK 830B
Stock: 0
Price:
$289.00

Qty: - +
   - OR -

Dual Display Capacitance Meter to 200 mF

The Model 830B Capacitance Meter features a large 4 1/2 digit LCD with dual display, 11,000 counts resolution, and 9 automatically selected ranges with full scale value from 1.0pF to 199.99mF. Designed to meet the latest international safety standards, the meter’s dedicated chip and microprocessor allow programmable high/low limits or pre-programmed standard capacitor tolerances, making it ideal for measuring values, inspection, sorting capacitors and testing capacitors against standard tolerances. Software and interface cable is included for PC based data logging and monitoring. Features:

  • Auto ranging
  • Dual display simultaneously displays value and deviation from selected tolerance
  • Sort on preset tolerance of 1, 5, 10%
  • Program unique values to sort for specific circuit applications
  • USB PC interface for data logging software included



Specifications

CAPACITANCE
RANGE (Best Resolution) 1000pF (0.1 pF)
10nF (1 pF)
100nF (10 pF)
1000nF (0.1nF)
10uF (1nF)
100uF (10nF)
1000uF (0.1uF)
10mF (1uF)
199.99mF (10uF)
ACCURACY +-(1% rdg + 11 dgt)
+-(1% rdg + 6 dgt)
+-(0.5% rdg + 4 dgt)
+-(0.5% rdg + 4 dgt)
+-(0.5% rdg + 4 dgt)
+-(0.5% rdg + 4 dgt)
+-(0.5% rdg + 4 dgt)
+-(1% rdg + 6 dgt)
+-(2% rdg + 6 dgt)
POWER SOURCE 9V Battery
BATTERY LIFE 80 hours typ. (alkaline, no back light)
DISPLAY 4 ½ digit LCD (dual)
DISPLAY COUNT 11,000
OPERATING TEMPERATURE 32 0 to 122 0 F (0 0 to 50 0C)
STORAGE TEMPERATURE -4 0 to 140 0 F (-20 0 to 60 0C)
DIMENSIONS (LxWxH) 7.24x3.42x1.61'' (184x87x41 mm)
WEIGHT 11.3 oz. (320g) approximate
