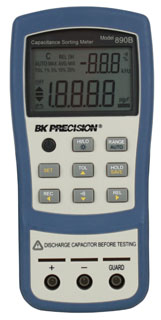

BK 890B Dual Display Capacitance Meter to 50 mF

The Model 890B Capacitance Meter features a large 4 1/2 digit LCD with dual display, 11,000 counts resolution, and 9 automatically selected ranges with full scale value from 1.0pF to 50mF. Designed to meet the latest international safety standards, the meter’s dedicated chip and microprocessor allow programmable high/low limits or pre-programmed standard capacitor tolerances, making it ideal for measuring values, inspection, sorting capacitors and testing capacitors against standard tolerances. Features:

• Dual display simultaneously displays value and deviation from selected tolerance
• Sort on preset tolerance of 1, 5, 10%
• Program unique values to sort for specific circuit applications

Specifications



CAPACITANCE
Range (Best Resolution)	1000pF (0.1 pF) 10nF (1 pF) 100nF (10 pF) 1000nF (0.1nF) 10uF (1nF) 100uF (10nF) 1000uF (0.1uF) 10mF (1uF) 50mF (10uF)
Accuracy	+-(1% rdg + 11 dgt) +-(1% rdg + 6 dgt) +-(0.5% rdg + 4 dgt) +-(0.5% rdg + 4 dgt) +-(0.5% rdg + 4 dgt) +-(0.5% rdg + 4 dgt) +-(0.5% rdg + 4 dgt) +-(1% rdg + 6 dgt) +-(2% rdg + 6 dgt)
POWER SOURCE
Type	9V Battery
Battery Life	80 hours typ. (alkaline, no back light)
Display	4-digit LCD (dual)
Display count	11,000
Operating Temperature	32° to 122° F (0° to 50°C)
Storage Temperature	-4° to 140° F (-20° to 60°C)
Dimensions (L x W x H)	7.24 x 3.42 x 1.61" (184 x 87 x 41mm)
Weight	11.3 oz. (320g) approximate
Warranty	3 years
Supplied Accessories	Test Leads, Manual, Battery
Optional Accessories	TL-8 SMD Probe AK-890 RS-232
Carrying case	(Not included) LC-29B
