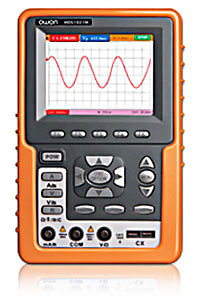

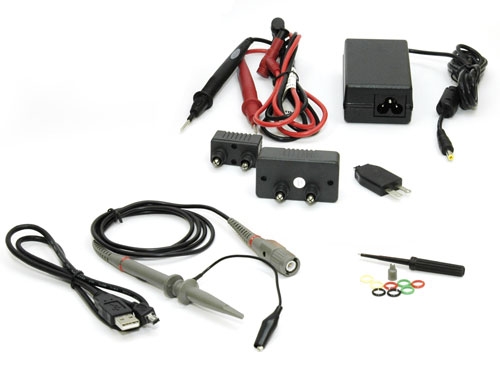

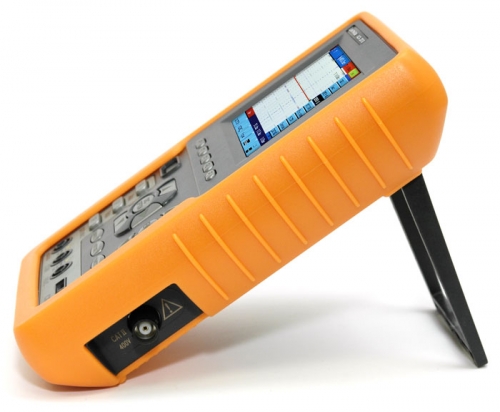

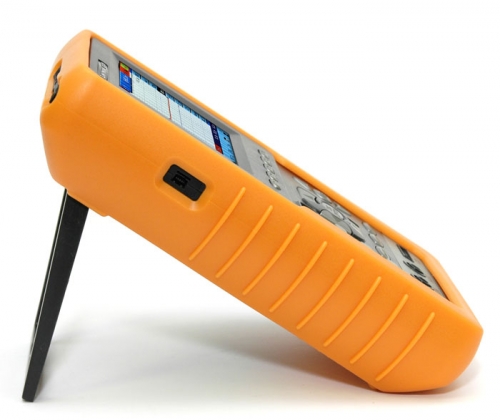

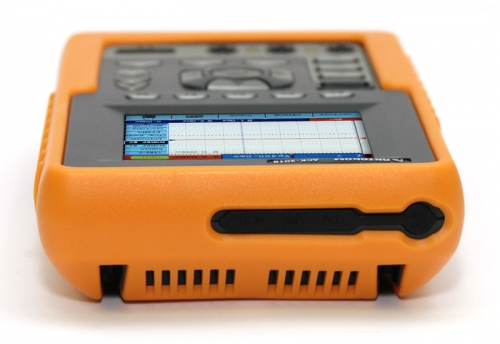

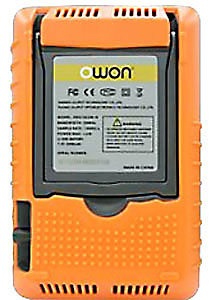

OWON HDS1021M Oscilloscope

SKU: HDS1021M
Stock: -1
Price:
$349.97

Qty: - +
   - OR -

Low-cost Scopemeter for signals research and the electrical parameters measurement.

Classic Scopemeter (Digital storage oscilloscope + Digital Multimeter). DSO: Single channels; bandwidth 20 MHz; sample rate (Real time) 100MS/s; record length 6K points on each channel; cursor and automeasurement (20 types); trigger type: edge, video; peak detect and average. DMM: 3 ¾ digits; VDC, VAC, DC, AC, resistance, capacitance, diode test, on-off test. Display: 3.5 '' color LCD, TFT screen, 320×240 pixels. Dimensions: 7.1in x 4.5in x 1.6in / 180mm x 115mm x 40mm. Weight: 16oz / 455g

Technical Specifications:

The instrument should operate continuously for more than 30 minutes under the specified operating temperature.

If the operating temperature is up to or larger than 41°F / 5°C, the system function menu must be opened to make the system perform a “Auto- calibration” procedure.

Except those specifications marked with the word Typical, all specifications can be up to the mentioned definitions.

Sampling

  • Sampling modes: Normal sampling, Peak detection, Average value
  • Sampling rate: 100 MSa/s;

Input

  • Input coupling: DC, AC, Ground
  • Input impedance: 1MΩ ± 2% connected in parallel with 20pF ± 5pF
  • Probe attenuation coefficient: 1X, 10X, 100X, 1000X
  • Max. Input voltage: 400 V (peak)
  • Channel delay time (typical): 150ps

Horizontal

  • Sampling rate range: 0.25S/s~100MS/s
  • Waveform interpolation: (sin x)/x
  • Record length: 6K points on each channel
  • Sampling rate and delay time accuracy: ±100ppm (any time interval which is equal to or larger than 1ms)
  • Time interval (ΔT) measurement accuracy (full bandwidth): Single: ± (1 sampling interval time +100ppm × reading+0.6ns) > average 16 : ± (1 sampling interval time +100ppm × reading+0.4ns)

Vertical

  • Analog digital converter (A/D): With the resolution of 8 bits, make sampling on both channels synchronously
  • Sensitivity range (V/div): 5mV/div~5V/div (at the input BNC)
  • Single bandwidth: Full bandwidth
  • Low frequency response (AD coupling, -3dB): ≥5Hz (at the BNC).
  • Rise time (typical one at the BNC): ≤17.5ns
  • DC gain accuracy: ±3%
  • DC measurement accuracy (average value sampling mode): The voltage difference (ΔV) between any two points on the waveform after averaging the captured waveforms more than 16: ±(5% reading + 0.05 divisions)

Trigger sensitivity:

(Edge)

  • DC coupling 1div (DC~full bandwidth)
  • AC coupling Same as the DC coupling when it is equal to or larger than 50Hz
  • Triggering level range ±6 divisions from the screen center
  • Triggering level accuracy (typical) which is applicable to the signal with rise and fall time equal to or longer than 20ns ±0.3 divisions
  • Trigger displacement 655 divisions for pre-triggering and 4 divisions for post-triggering
  • Trigger Holdoff range 100ns~10s
  • Make a 50% level setting (Typical). Operation with the input signal frequency equal to or larger than 50Hz.
  • Trigger sensitivity (Video triggering and typical mode) 2 divisions of peak-to-peak value
  • Signal system and line/field frequency (Video triggering mode); Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency

Probe

  1X position 10X position
Bandwidth Up to 6 MHz (DC) Up to full bandwidth (DC)
Attenuation rate 1: 1 10: 1
Compensation range 15pf~35pf
Input resistance 1MΩ±2% 10MΩ±2%
Input impedance 85pf~115pf 14.5pf~17.5pf
Input voltage <200 V DC+Peak AC <600 V DC+Peak AC

Voltage (VDC)

Input Impedance: 10MΩ. Max. Input Voltage: 1000V (DC or AC peak-to-peak value)



Range Accuracy Resolution
400.0mv   100µV
4.000V   1mV
40.00V ±1%±2 digit 10mV
400.0V   100mV
1000.0V   1V



Voltage (VAC)

Input Impedance: 10MΩ. Max. Input Voltage: 750V (AC, virtual value). Frequency range: from 40Hz to 400Hz. Display: Virtual value of the sine wave



Range Accuracy Resolution
4.000V   1mV
40.00V ±1%±3 digits 10mV
400.0V   100mV
750.0V ±1.5%±3 digit 1V



Direct Current (DC)



Range Accuracy Resolution
40.00mA ±1.5%±1 digit 10µA
400.0mA ±1.5%±1 digit 100µA
10A ±3%±3 digit 10mA



Alternating Current (AC)



Range Accuracy Resolution
40.00mA ±1.5%±3 digit 10µA
400.0mA ±2%±1 digit 100µA
10A ±5%±3digit 10mA



Resistance



Range Accuracy Resolution
400.0Ω ±1%±3 digit 0.1Ω
4.000KΩ
40.00KΩ   10Ω
400.0KΩ ±1%±1 digit 100Ω
4.000MΩ   1KΩ
40.000MΩ ±1,5%±3 digit 10KΩ



Capacitance



Range Accuracy Resolution
51.20nF   10pF
512.0nF   100pF
5.120µF ±3%±3 digit 1nF
51.20µF   10nF
100µF   100nF



Diode

Voltage reading: 0 V~1.5 V.

On-off Test

There is a beep sound when the on-resistance is less than 50Ω.

General Specifications:

Basic parameters

  • Mechanical dimensions: 7.1in x 4.5in x 1.6in / 180mm x 115mm x 40mm
  • Weight: 16oz / 455g
  • Display type: 3.7" color liquid crystal display
  • Display resolution: 640 (horizontal) × 480 (vertical) pixels
  • Display color: 65536 colors

Power Adapter

  • Power supply: 100-240 V AC 50/60Hz

Battery type: 7.4V built-in Li-ion battery.

Working environment

  • Used battery: 32 to 122 °F / 0 to 50 °C
  • Power adapter: 32 to 104 °F / 0 to 40 °C

Temperature:

Operation

  • 32 to 50 °F / 0 to 10°C, no condensation
  • 50 to 86 °F / 10 to 30°C, 95%
  • 86 to 104 °F / 30 to 40°C, 75%
  • 104 to 122 °F / 40 to 50 °C, 45 %

Storage

  • -4 to +140 °F / -20 to +60 °C, no condensation
