OWON PDS8202T Oscilloscope

SKU: PDS8202T
Stock: 0
Price:
$836.00

Qty: - +
   - OR -

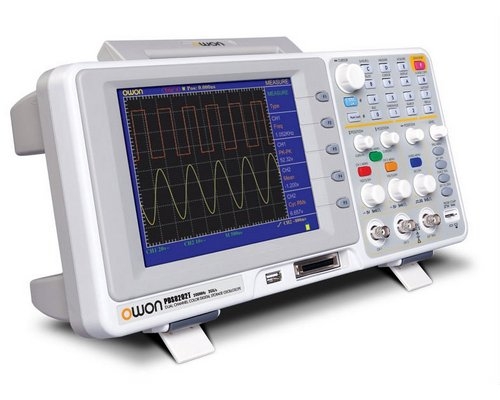

New portable oscilloscope model with widened bandwidth, large color display, battery supply and big recording depth. This device is a perfect choice for developers and engineers.

Digital storage oscilloscope. Dual channels + external trigger. Bandwidth 200 MHz. Max. Sample rate (Real time) 2 GS/s. Max Record length 2M points. Cursor measurement. Automeasurement 20 types. Trigger type: Edge, Video, Alternate, Pulse, Slope. FFT. Peak detect and Average. Support USB Flash Disk Storage. Display: 8.0 '' color LCD, TFT screen, 640×480 pixels. Dimensions: 14.7in × 7.09in × 14.7in / 374mm × 180mm × 374mm. Weight: 4.9lb / 2.3kg

Technical Specifications:

  • This instrument should run for more than 30 minutes continuously under the specified operating temperature
  • If the change range of the operating temperature is up to or exceeds 41°F / 5°C, open the system function menu and execute the “Auto-calibration” procedure

All specification standards can be fulfilled, except one(s) marked with the word “Typical”.

Bandwidth

  • 200MHz

Channel 2 + 1 (External)

Acquisition

Mode Normal, Peak detect, Averaging

Sample rate (real time)

  • 2GS/s half channel*, 1GS/s each channel

Input

  • Input coupling DC, AC , Ground
  • Input impedance 1MΩ±2%, in parallel with 15pF±5pF
  • Probe attenuation factor 1X, 10X, 100X, 1000X
  • Max. input voltage 400V (PK-PK) (DC + AC PK-PK)
  • Bandwidth limit 20MHz, 100MHz
  • Channel isolation 50Hz: 100 : 1; 10MHz: 40 : 1
  • Time delay between channel(typical) 150ps

Horizontal System

Sampling rate range

  • 1S/s~2GS/s half channel*, 1S/s~1G S/s each channel

Interpolation: (sin x)/x

Record length: 2.5M points on each channel

Scanning speed: (S/div)

  • 1ns/div~100s/div, step by 1~2~5

Sampling rate / relay time accuracy ±100ppm

Interval (ΔT) accuracy (DC~100MHz)

Single: ±(1 interval time + 100ppm × reading + 0.6ns);

Average>16: ±(1 interval time + 100ppm × reading + 0.4ns)

Vertical system

A/D converter: 8 bits resolution (2 Channelssimultaneously)

Sensitivity: 2mV/div~10V/div (at BNC)

Displacement

±1V(2mV ~ 50mV), ±10V(100mV ~ 1V), ±100V(2V ~ 10V)

Analog bandwidth

  • 200MHz

Single bandwidth Full bandwidth

Low Frequency: ≥5Hz (at input, AC coupling, -3dB)

Vertical system

Rise time

  • ≤1.75 ns (at input, Typical)

DC accuracy: ±3%

DC accuracy (average) Average﹥16: ±(3% rdg + 0.05 div) for ΔV

Measurement

Cursor: ΔV and ΔT between cursors

Automatic - Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, DelayA→B, +Width, -Width, +Duty, -Duty

Waveform Math +, -, *, / , FFT

Waveform storage: 4 waveforms

Lissajou’s figure

Bandwidth: Phase difference

Full bandwidth ±3 degrees

Frequency (typical): 1KHz square wave

Communication port: USB1.1 or RS-232, USB for file storage

Trigger

Trigger level range

  • Internal ±6 div from the screen center
  • EXT ±600mV
  • EXT/5 ±3V

Trigger level

Accuracy (typical)

  • Internal ±0.3div
  • EXT ±(40mV + 6% of Set Value)
  • EXT/5 ±(200mV +6% of Set Value)

Trigger displacement: Pre-trigger: 655 div, Post-trigger: 4 div

Trigger Holdoff range: 100ns~10s

50% level setting (typical): Input signal frequency ≥50Hz

Edge trigger

  • Slope Rising, Falling
  • Sensitivity 0.3div

Pulse trigger

Trigger condition

Positive pulse: >, <, =; negative pulse: >, <, =

Pulse Width range 24ns~10s

Video Trigger Modulation

Support standard NTSC PAL and SECAM broadcast systems

Line number range 1-525 (NTSC) and 1-625 (PAL/SECAM)

Slope Trigger

Trigger condition

Positive pulse: >, <, =

negative pulse: >, <, =

Time setting: 24ns~10s

Alternate Trigger

Trigger on CH1: Edge, Pulse, Video, Slope

Trigger on CH2: Edge, Pulse, Video, Slope

General Technical Specifications:

Display

  • Display Type 8” Colored LCD (Liquid Crystal Display)
  • Display Resolution 640 (Horizontal) × 480 (Vertical) Pixels
  • Display Colors: 65536 colors, TFT screen

Output of the Probe Compensator

  • Output Voltage (Typical) About 5V, with the Peak-to-Peak value equal to or greater than 1MΩ of load
  • Frequency (Typical) Square wave of 1KHz

Power

  • Mains Voltage 100~240 VAC RMS, 50/60Hz, CAT II
  • Power Consumption < 18W
  • Fuse 1A, T grade, 250V

Environment

  • Temperature Working temperature: 32°F~104°F / 0°C~40°C; Storage temperature: -4°F~ +140°F / -20°C~ +60°C
  • Relative Humidity ≤ 90%
  • Height Operating: 2743.2 yd / 2508.4m; Non-operating: 16404 yd / 15000m
  • Cooling Method Natural convection

Mechanical Specifications

  • Dimensions: 14.7in × 7.09in × 14.7in / 374mm × 180mm × 374mm
  • Weight 4.9 lb / 2.3kg

Interval Period of Adjustment:

One year is recommended for the calibration interval period
