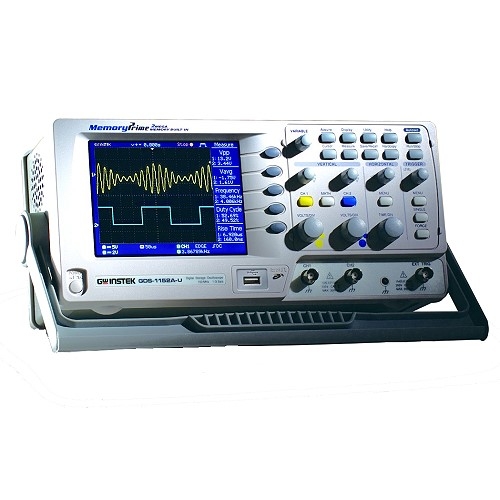

Instek GDS-1072A-U 70MHz Digital Oscilloscope 2CH w/ TFT Color LCD Display

SKU: GDS-1072A-U
Stock: 0
Price:
$399.00

Qty: - +
   - OR -



Instek GDS-1072A-U 70MHz Digital Oscilloscope 2CH w/ TFT Color LCD Display

GDS-1000A-U Series

The GDS-1000A-U series provide a unique solution. The GDS-1000A-U lineup includes GDS-1152A-U, GDS-1102A-U and GDS-1072A-U three models. Operating at 150, 100 or 70 MHz with a real-time sampling rate of 1GSa/s, the GDS-1000A-U employs MemoryPrime technology. Using MemoryPrime technology, the GDS-1000A is able to overcome the problems associated with memory constraints. High sample rates, rarely found in traditional DSOs, can be maintained over longer periods of time, without effecting performance.

Coupled with the high resolution 5.7” color TFT display, with user-friendly interface USB device and host port make the GDS-1000A series feature-rich. Furthermore, the GDS-1000A series provide a lifetime warranty program!

Features:

  • 150/100/70MHz Bandwidths
  • 1GSa/s Real-Time Sample Rates Maximum, 25GSa/s Equivalent-Time
  • 2Mega Points Record Length
  • 2mV~10V Vertical Scale
  • 1ns~50s Horizontal Range
  • Up to 27 Automatic Measurements
  • 5.7" TFT LCD Display
  • USB Host and Device Interface Supported
  • Go/NoGo Function
  • Data Logger
  • Limited Lifetime Warranty

Supplied With:

NEW FEATURES

PictBridge Printer Supported
The GDS-1000A-U is one of the few DSOs currently on the market that can provide complete remote control or data capture over an USB interface. The GDS-1000A-U Series also supports PictBridge, allowing you to print directly to your printer without complex configuration. After connecting to a PictBridge compatible printer with an USB cable, printing is as easy as pressing a button.

Fast Horizontal Position Mark and Search
MemoryPrime technology allows a maximum of 2M points of waveform data. For engineers, analyzing a considerable amount of data can be an extremely challenging task. To assist engineers to analyze waveforms quicklier, we provide Horizontal Page Skip and Set Time Mark functionalities, letting engineers take full advantage of the 2M memory depth.

Auto Measurement Gating
A built-in Autoset function on a digital oscilloscope gives engineers remarkable convenience. With the complexities of product features, traditional auto measurement information is inadequate for modern measurement needs. The new Cursor Gating feature allows you to mark an area with cursors for auto measurement.

Flexible Probe Factor Setting
There is a diverse range of test probes currently on the market such as passive, differential, and electrical probes. The attenuation ratio of each probe type also differs greatly. To ensure compatibility, probe attenuation ratios of 0.1X to 2000X as well as voltage and current probes are supported by the GDS-1000A-U.




GDS-1072A-U
GDS-1102A-U
GDS-1152A-U
VERTICAL
Channels
2
2
2
Bandwidth
DC~70MHz(-3dB)
DC~100MHz(-3dB)
DC~150MHz(-3dB)
Rise Time
<5ns Approx.
<3.5ns Approx.
<2.3ns Approx.
Sensitivity 2mV/div ~ 10V/div (1-2-5 increments)
Accuracy ±(3% x |Readout| + 0.1 div + 1mV)
Input Coupling AC, DC & Ground
Input Impedance 1MΩ±2%, ~15pF
Polarity Normal & Invert
Maximum Input 300V (DC+AC peak), CATII
Waveform Signal Process + , - , x, FFT, FFTrms ,Zoom FFT
Offset Range
 		 2mV/div ~ 50mV/div: ±0.4V
100mV/div ~ 500mV/div: ±4V
1V/div ~ 5V/div: ±40V
10V/div: ±300V
Bandwidth Limit 20MHz (-3dB)
TRIGGER
Sources CH1 , CH2 , Line , EXT
Modes Auto, Normal, Single, TV, Edge, Pulse Width
Coupling AC , DC , LF rej. , HF rej. , Noise rej.
Sensitivity DC ~ 25MHz: Approx. 0.5div or 5mV;
25MHz ~ 70/100/150MHz: Approx. 1.5div or 15mV
EXT TRIGGER
Range ±15V
Sensitivity DC ~ 25MHz : ~ 50mV ; 25M ~ 70/100/150MHz : ~15mV
Input Impedance 1MΩ±2% , ~ 15pF
Maximum Input 300V (DC AC peak) , CATII
HORIZONTAL
Range 1ns/div ~ 50s/div (1-2.5-5 increments); ROLL : 50ms/div ~ 50s/div
Modes Main, Window, Window Zoom, Roll, X-Y
Accuracy ±0.01%
Pre-Trigger 10 div maximum
Post-Trigger 1000 div
X-Y MODE
X-Axis Input Channel 1
Y-Axis Input Channel 2
Phase Shift ±3°at 100kHz
SIGNAL ACQUISITION
Real-Time Sample Rate 1GSa/s maximum
Equivalent Sample Rate 25GSa/s maximum
Vertical Resolution 8 Bits
  2 Mega Points maximum
Acquisition Mode Normal, Peak Detect, Average
Peak Detection 10ns (500ns/div ~ 10s/div)
Average 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
CURSORS AND MEASUREMENT
Voltage Measurement Vpp ,Vamp ,Vavg ,Vrms ,Vhi ,Vlo ,Vmax ,Vmin ,Rise Preshoot/Overshoot ,Fall Preshoot/Overshoot
Time Measurement Freq ,Period ,Rise Time ,Fall Time ,Positive Width ,Negative Width ,Duty Cycle
Cursors Measurement Voltage difference between cursors (V)
Time difference between cursors (T)
Auto Counter
 		 Resolution : 6 digits
Accuracy: 2%
Signal Source: All available trigger source except the Video trigger mode
ADJUSTABLE PROBE COMPENSATION SIGNAL
Frequency Range 1kHz ~ 100kHz, 1kHz/STEP
Duty Cycle Range 5% ~ 95%, 5%/STEP
CONTROL PANEL FUNCTION
Autoset Adjust Vertical VOLT/DIV, Horizontal TIME/DIV, and Trigger level automatically
Save Setup Up to 15 sets of measurement conditions
Save Waveform 15 sets of waveform
DISPLAY
TFT LCD Type 5.7 inch
Display Resolution 234(Vertically) x 320(Horizontally) Dots
Display Graticule 8 x 10 divisions
Display Brightness Adjustable
INTERFACE
USB Device USB1.1 & 2.0 full speed compatible (Pictbridge Compatibility Printers Supported)
USB Host Image (BMP), waveform data (CSV), and setup (SET)
POWER SOURCE
Line Voltage Range AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
MISCELLANEOUS
Multi-Language Menu Available
Onscreen Help Available
DIMENSIONS & WEIGHT
  310(W) x 142 (H) x 140(D)mm, Approx. 2.5kg
