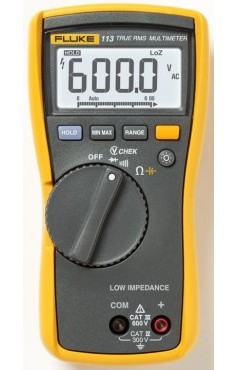

Fluke 113 Basic Multimeter

SKU: Fluke 113
Stock: 0

Price:

$101.00

Write a Review

(0.0 on 0)

Overview Reviews

True-rms Basic Multimeter designed for basic electrical tests

The Fluke 113 Basic Multimeter gives utility users the means to quickly and easily do basic meter set and reconnect testing. This meter is simple-to-use and has the features needed to repair most electrical problems.

The Fluke 113 Basic Multimeter has significant improvements over Fluke’s original 7-600, and other utility multimeters. Using the Fluke VCHEK™ LoZ low impedance measurement function, users can simultaneously test for voltage or continuity.

The Fluke 113 Basic Multimeter can perform diode tests, and also provides both auto and manual ranging capabilities. With features such as conformance to the latest safety standards, backlight, and a much larger display that’s easier to view, this new meter is a must have for the utility users toolbox.

What's Included:

Fluke TL75 test leads
Holster
Users manual
and 9 V battery (installed)

Features

VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity
Record signal fluctuations using the Min/Max function
True-rms for accurate ac measurements on non-linear loads
A large backlit display allows for easy visibility in low-lit areas
Diode test for testing general-purpose germanium, silicon, and power diodes
Integral holster with probe holders for easy storage
Auto and Manual ranging for added user functionality
Meets Measurement Category CAT III 600 V and Category IV 300 V standards for a higher level of safety
The optional TPAK magnetic hanger allows the user hands-free flexibility

Specifications

VCHECK ^1,2

Range	6.000 V
	60.00 V
	600.0 V
Resolution	0.001 V
	0.01 V
	0.1 V
Accuracy	DC, 45 to 500 Hz:2.0 % + 3
	500 Hz to 1 kHz: 4.0 % + 3

Diode test ³

Range	2.000 V
Resolution	0.001 V
Accuracy	2.0 % + 3

Continuity³

Range
Resolution
Accuracy	Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer

��³

Range	600.0 Ω
	6.000 kΩ
	60.00 kΩ
Resolution	0.1 Ω
	0.001 kΩ
	0.01 kΩ
Accuracy	0.9 % + 2
	0.9 % + 1
	0.9 % + 1

Capacitance³

Range	1000 nF
	10.00 μF
	100.0 μF
	9999 μF
Resolution	1 nF
	0.01 μF
	0.1 μF
	1 μF
Accuracy	1.9 % + 2
	1.9 % + 2
	1.9 % + 2
	100 μF - 1000 μF: 1.9 % + 2
	> 1000 μF: 5 % + 20

Notes:
¹ All VChek voltage ranges are specified from 60 counts to 100 % of range. Because inputs below 60 counts are not specified, it is possible and normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together.
² Crest factor of ≤ 3 at 4000 counts, decreasing linearly to 1.5 at full scale.
³ After measuring voltage, a wait time of 1 minute is required to maintain accuracy of ohms, capacitance, diode test, and continuity.

Specifications

Maximum voltage between any terminal and earth ground

600 V

Display

3 3/4-digits, 6000 counts, updates 4/sec

Operating temperature

-10 °C to 50 °C (14 °F to 122 °F)

Storage temperature

-40 °C to 60 °C (-22 °F to 140 °F)

Temperature coefficient

0.1 x (specified accuracy)/°C (< 18 °C or > 28 °C)

Operating altitude

2,000 m

Storage altitude

10,000 m

Relative humidity

	95 % to 30 °C
	75 % to 40 °C
	45 % to 50 °C

Battery type

9 Volt Alkaline, ANSI 1604A / IEC 6F22

Battery life

Alkaline: 300 hours typical, without backlight

Shock

1 Meter drop per IEC 61010-1-2001

Vibration

Per MIL-PRF-28800 for Class 2 instrument

Size (HxWxL)

167.1 mm X 85.1 mm X 46.0 mm (6.58 in X 3.35 in X 1.81 in)

Weight

13.0 oz (404 g)

Safety

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1

EMI regulations

Complies with FCC Part 15, Class B

Specifications

VCHECK

Input Impedance (Nominal)

~3 kΩ < 300 pF

VCHECK

Common Mode Rejection Ratio (1 kΩ Unbalanced)

> 60 dB at dc, 50 or 60 Hz
