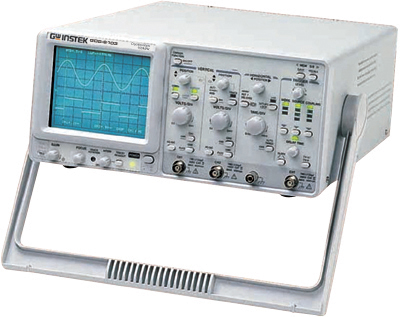

Instek GOS-6103C 100MHz with counter Analog Oscilliscope

SKU: GOS-6103C
Stock: 0
Price:
$1255.00

Qty: - +
   - OR -

The GOS-6100 Series is a 100MHz, two-channel, dual-sweep, and portable oscilloscope for general purpose use. A microprocessor-based operating system controls most of the functions of the instrument, including cursor readout and digitized panel setting.

On-screen alphanumeric readout and cursor function for voltage, time, frequency and phase measurement provide extraordinary operational convenience. The advance Time Base Auto-rang function conveniently acquires waveforms at the push of button (GOS-6103/ 6103C). Ten different user defined instrument settings (GOS-6103/ 6103C) can be saved and recalled without restriction.

The vertical deflection system has two input channels. Each channel has 11 basic deflection factors from 2mV to 5V per division. The horizontal deflection system provides single, dual or delayed sweeps from 0.5s to 50ns per division (delayed sweep, 50ms to 50ns per division). The trigger system provides stable triggering over the full bandwidth of the vertical deflection system.

FEATURES

* 100MHz Bandwidth, Dual Channel, Delayed Sweep
* Built-In 6 digits Universal Counter (GOS-6103C)
* 10 Sets Memory for Front Panel Setting Save & Recall (GOS-6103/GOS-6103C)
* Time Base Auto-range (GOS-6103/GOS-6103C)
* Cursor Readout with 7 Measurements
* Panel Setup Lock of Digital-Control Functions
* Buzzer Alarm
* LED Indicators
* TV Synchronization

SPECIFICATION



CRT
Type 6-inch rectangular type with internal graticule;
0%, 10%, 90% and 100% markers.
8 x 10 div (1 div = 1 cm)
Accelerating Potential 16kV approx. (GOS-6103/GOS-6103C), 12 kV approx.(GOS-6112)
Illumination Continuously adjustable (GOS-6103/GOS-6103C)
Z-axis input Coupling : DC
Sensitivity: 5V or more
Maximum input voltage : 30V (DC + AC peak) at 1kHz or less
Bandwidth : DC ~ 5 MHz
VERTICAL SYSTEM
Sensitivity 2mV~5V/div, 11 step in 1-2-5 sequence
Sensitivity Accuracy 3% (5div at the center of display)
Vernier Vertical Sensitivity Continuously variable to 1/2.5 or less of panel-indicate value
Bandwidth(-3dB) DC~100MHz (2mV/div:DC~20MHz)
Rise Time 3.5ns (2mV/div:17.5ns)
Signal Delay Leading edge can be monitored
Max. Input Voltage 400V(DC+AC peak) at 1kHz or less
Input Coupling AC, DC, GND
Input Impedance 1MΩ±2% // approx. 25pF
Vertical Mode CH1,CH2,DUAL(CHOP/ALT), ADD, CH2 INV.
Bandwidth Limited 20MHz
Common-Mode Rejection Ratio 50:1 or better at 50kHz
Dynamic Range 8 div at 60MHz
5 div at 100MHz
HORIZONTAL SYSTEM
Horizontal Modes MAIN(A), ALT, DELAY(B)
A(main) Sweep Time 50ns~0.5s/div, continuously variable (UNCAL)
B(delay) Sweep Time 50ns~50ms/div
Accuracy ±3% (±5% at x 10 MAG)
Sweep Magnification x 10 (maximum sweep time 5nS/div)
Hold Off Time Variable
Delay Time 1μs~5s
Delay Jitter Better than 1:20000
Alternate Separation Variable
TRIGGER
Trigger Modes AUTO, NORM,TV
Trigger Source CH1, CH2, LINE, EXT
Trigger Coupling AC, DC, HFR, LFR
Trigger Slope "+" or "-" polarity or TVsync polarity
Trigger Sensitivity
Mode Frequency INT EXT
AUTO 10Hz~20MHz
20MHz~100MHz
0.35div
1.5div
50mV
150mV
NORM DC~20MHz
20MHz~100MHz
0.35div
1.5div
50mV
150mV
TV sync singnal 1div 200mVpp
TV sync TV-V, TV-H
Max. External Input Voltage 400V (DC+AC peak) at 1kHz
External Input Impedance 1MΩ±5% // approx.25pF
X-Y OPERATION
Mode

X-axis: selectable CH1, CH2, EXT
Y-axis: selectable CH1, CH2, CH1 and CH2

Sensitivity Accuracy 2mV~5V/div±3% ; EXT : 0.1V/div±5%
X-axis Bandwidth DC~500kHz(-3dB)
Phase Error 3° or less from DC~50kHz
OUTPUT SIGNAL
CH1 Signal Output Voltage: approx. 25mV/div into 50Ω
Frequency response : DC ~ 10MHz
Calibrator Output 1kHz Square wave, 2Vpp±2%
CURSOR READOUT FUNCTION
Cursor Measurement Function ΔV, ΔV%, ΔVdB, ΔT, 1/ ΔT, ΔT%, Δθ
Cursor Resolution 1/100 DIV
Effective Cursor Range Vertical: ±3div ; Horizontal: ±4 div
Panel Setting Display Vertical: V/div(CH1,CH2),UNCAL,ALT/CHOP/ADD,INV, probe factor,AC/DC/GND
Horizontal: s/div(MTB, DTB), UNCAL, x 10MAG, delay time , HO
Trigger: source, coupling, slope, level, TV-V, TV-H
Others: X-Y lock, save/recall MEM 0-9 (GOS-6103/GOS-6103C)
AUTO MEASUREMENT FUNCTION (GOS-6103C)
Parameter Function FREQ, PERIOD, ±WIDTH, ±DUTY (+ or - polarity selected by trigger slope)
Display Digits Max. 6-digits, decimal
Frequency Range 50Hz ~ 100MHz
Accuracy 1kHz ~ 100MHz : 0.01% ; 50Hz ~ 1kHz : 0.05%
Measuring Sensitivity > 2 div (Measuring source selected from CH1 and CH2 as synchronous signal sources)
SPECIAL FUNCTION
TIME/DIV Auto Range Provided (GOS-6103/GOS-6103C)
Panel Setting Save & Recall 10 sets (GOS-6103/GOS-6103C)
Panel Setups Lock Provided
POWER SOURCE
  AC 100V/ 120V/ 230V±10% , 50/60Hz
DIMENSIONS & WEIGHT
  310(W) x 150(H) x 455(D) mm; Approx. 9kg
