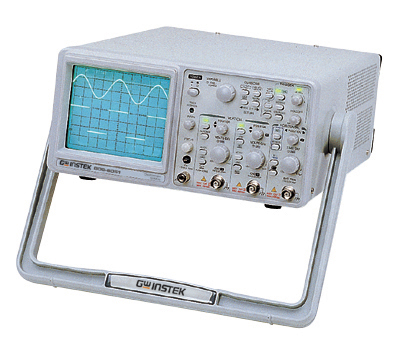

Instek GOS-6050 50MHz - Readout Analog Oscilloscope
SKU: GOS-6050
Stock: 0
Stock: 0
Price:
$585.00
The GOS-6000 Series Analog Oscilloscopes provides a remarkable combination of high performance and compact design in bandwidth ranging between 30 and 50 MHz. Coupled with various trigger functions, waveforms can be acquired and observed in diverse application fields. Signals can be magnified by a ratio of x5, x10 and x20 in the use of the ALT MAG function. Together with the Cursor Readout and Frequency Counter functions (GOS-6051/6031), the GOS-6000 Series offers tremendous value for your investment in testing and analysis.
FEATURES
* 2 Channels, 4 Traces:
* DC~50M/30MHz Bandwidth
* 1mV/div ~ 20V/div
* CRT Readout
* Cursor Measurement, 6 Digit Frequency Counter, 10 sets Memory for Front Panel Setting Save & Recall(GOS-6051/6031)
* ALT, MAG Function (x 5, x 10, x 20)
* Vertical Mode Triggering
* TV Synchronization
* Buzzer Alarm & LED Indicators
SPECIFICATION
| CRT | |||||||||||||||||||||
| Type | 6-inch rectangular type with internal graticule; 0%, 10%, 90%, 100% markers. 8 x10 div(1div=1cm) |
||||||||||||||||||||
| Accelerating Potential | GOS-6051/6050:approx.10kV; GOS-6031/6030 : approx. 2kV | ||||||||||||||||||||
| Illumination | Provided (GOS-6051/6031) | ||||||||||||||||||||
| Trace Rotation | Provided | ||||||||||||||||||||
| Z-axis Input | Sensitivity : at least 5V ; Polarity : positive going input decrease ntensity Usable frequency range : DC to 2MHz ; Max. input voltage : 30V (DC + AC peak) at 1kHz or less Input Impedance:GOS-6051/6050:approx.33kΩ ;GOS-6031/6030:approx.47kΩ |
||||||||||||||||||||
| VERTICAL SYSTEM | |||||||||||||||||||||
| Sensitivity and Accuracy | 1mV ~ 2mV/div ±5%, 5mV ~ 20V/div ±3%, 14 calibrated steps in 1-2-5 sequence | ||||||||||||||||||||
| Vernier Vertical Sensitivity | Continuously variable to 1/2.5 or less of panel indicate value | ||||||||||||||||||||
| Bandwidth (-3dB) and Rise Time |
|
||||||||||||||||||||
| Maximum Input Voltage | 400V (DC + AC peak) at 1kHz or less | ||||||||||||||||||||
| Input Coupling | AC, DC, GND | ||||||||||||||||||||
| Input Impedance | 1MΩ ±2% / /approx. 25pF | ||||||||||||||||||||
| Vertical Modes | CH1, CH2, DUAL (CHOP, ALT), ADD, CH2 INV | ||||||||||||||||||||
| Chop Frequency | Approx. 250kHz | ||||||||||||||||||||
| Dynamic Range | GOS-6051/6050:8 div at 40MHz, 6div at 50MHz; GOS-6031/6030:8 div at 20MHz, 6div at 30MHz | ||||||||||||||||||||
| HORIZONTAL SYSTEM | |||||||||||||||||||||
| Sweep Time | 0.2μs ~ 0.5s/div, 20 steps selectable in 1-2-5 sequence, continuous variable control between steps at least 1 : 2.5 | ||||||||||||||||||||
| Accuracy | ±3%, ±5% at x5/ x10MAG, ±8% at x 20MAG | ||||||||||||||||||||
| Sweep Magnification | x5, x10, x20 MAG | ||||||||||||||||||||
| Maximum Sweep Time (at MAG) |
GOS-6051/6050 : 20ns/div (10ns/div are uncalibrated) GOS-6031/6030 : 50ns/div (10ns/div ~ 40nS/div are uncalibrated) |
||||||||||||||||||||
| ALT-MAG Function | Available | ||||||||||||||||||||
| TRIGGER | |||||||||||||||||||||
| Trigger Mode | AUTO, NORM, TV | ||||||||||||||||||||
| Trigger Source | VERT-MODE, CH1, CH2, LINE, EXT | ||||||||||||||||||||
| Trigger Coupling | AC, HFR, LFR, TV-V(-), TV-H(-) | ||||||||||||||||||||
| Trigger Slope | “+”or“ - ”polarity | ||||||||||||||||||||
| Trigger Sensitivity |
TV sync pulse more than 1 div (CH1, CH2, VERT-MODE) or 200mV (EXT) |
||||||||||||||||||||
| External Trigger Input | Input impedance: Approx.1MΩ//25pF(AC coupling); Max. input voltage: 400V(DC+AC peak)at 1kHz |
||||||||||||||||||||
| Hold-off Time | Variable | ||||||||||||||||||||
| X-Y OPERATION | |||||||||||||||||||||
| Input | X-axis: CH1 ; Y-axis: CH2 | ||||||||||||||||||||
| Sensitivity | 1mV ~ 20V/div | ||||||||||||||||||||
| Bandwidth | X-axis: DC ~ 500kHz (-3dB) | ||||||||||||||||||||
| Phase Difference | 3°or less from DC to 50kHz | ||||||||||||||||||||
| OUTPUT SIGNAL | |||||||||||||||||||||
| CH1 Signal Output | Voltage : approx. 20mV/div (with 50Ω terminated) Bandwidth : 50Hz to at least 5MHz |
||||||||||||||||||||
| Calibrator Output | Voltage : 0.5V ±3% Frequency : approx. 1kHz, square wave |
||||||||||||||||||||
| CRT READOUT | |||||||||||||||||||||
| Panel Setting Display | CH1/CH2 sensitivity, sweep time, trigger condition | ||||||||||||||||||||
| Panel Setting Save & Recall | 10 sets (for GOS-6051/6031) | ||||||||||||||||||||
| Cursor Measurement | Cursor measurement function : ΔV, ΔT, 1/ΔT Cursor resolution : 1/25 div ; Effective cursor range : vertical : ±3 div ; Horizontal : ±4 div Display digits : Max. 6-digits decimal |
||||||||||||||||||||
| Frequency Counter | Frequency range :GOS-6051 : 50Hz ~ 50MHz; GOS-6031 : 50Hz ~ 30MHz Accuracy : ±0.01% Measuring sensitivity : more than 2 div (measuring source selected from CH1 or CH2 as synchronous signal sources) |
||||||||||||||||||||
| POWER SOURCE | |||||||||||||||||||||
| AC 100V/ 120V/ 230V ±10%, 50Hz/ 60Hz | |||||||||||||||||||||
| DIMENSIONS & WEIGHT | |||||||||||||||||||||
| 275(W) x 130(H) x 370(D) mm; Approx. 7.2kg | |||||||||||||||||||||
