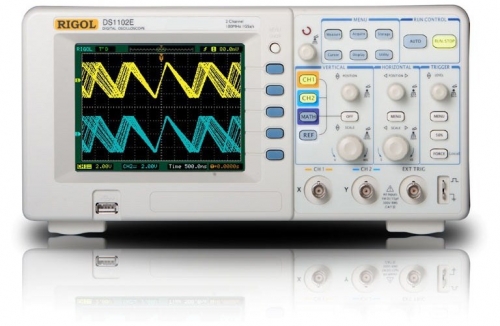

Rigol DS1102E 100 MHz Dual Channel Digital Oscilloscope

SKU: DS1102E
Stock: 0
Price:
$399.00

Qty: - +
   - OR -
  • The DS1000E Series Digital Oscilloscopes set a new standard for technology and capability. With features including 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000E is the new bench standard.
  •
  •   Rigol DS1102E

    100 MHZ DSO Oscilloscope 2 CH



    Features

  • 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent-time sample rate
  • 1Mpts long Memory Depth
  • 100 MHz Bandwidth
  • Ultra compact design: 303mm x 154mm x 133mm (WxHxD)
  • Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate
  • Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger
  • 20 automatic measurements
  • Cursor measurements: Manual, Track and Auto Measure modes
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions:+, -, x, FFT, Invert
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter

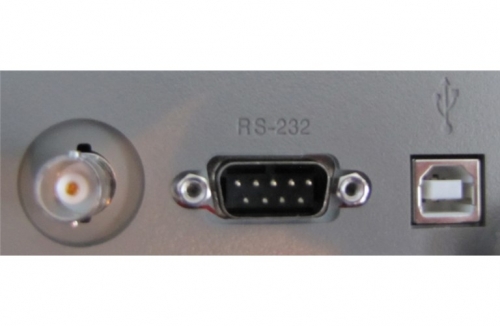

  • Standard interface: USB Device, USB Host, RS-232
  • Standard configuration: PassIFail test, effectively avoid electromagnetic interference by using photoelectricity-isolation
  • Multi-language user interface, built-in help system
  • Direct print to PictBridge compatible printers via USB Device interface.

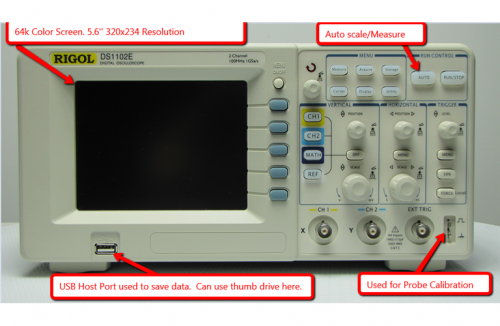

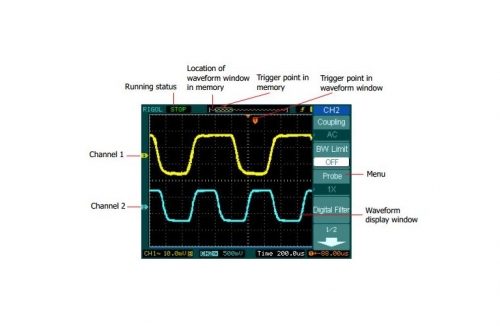

  • 5.6" TFT QVGA (320X240) with 64K color LCD backlit display,Unique/vivd waveform record and replay
  • Unique adjustable trigger sensitivity enables to meet different demands
  • Abundant trigger types: edge, pulse width, slope, video, alternate trigger
  • Enable to measure 20 types of wave parameters and track measurements via cursor automatically
  •
  •  Power: 100-240V / 50VA max
  • True mixed signal oscilloscope with 16 channels of digital acquisition
  • 5.7" 64K TFT color, vivid display
  • 1GS/s Msa/s real-time sample
  • Built-in USB host to support USB flash memory, USB printers and direct system upgrades
  • Advanced trigger modes includes edge, video, slope, alternate, pulse width, pattern
  • 1M of memory (512K points dual channels)
  • SEE VIDEOS CLICK ON LINKS BELOW
  • Model
    Bandwidth
    100 MHz
    Analog Channels
    2
    Vertical Sensitivity
    2 mV/div - 10V/div
    Real-time Sample Rate
    1 GSa/s（each channel），500 MSa/s（dual channels）
    Equivalent Sample Rate
    25 GSa/s
    Memory Depth
    Mode
    one channel
    dual channels
    Standard Interface
    USB Host & Device, RS-232, P/F Out
    Vertical Resolution
    8 bits
    Math
    ＋, －, ×, FFT
    Max Input Voltage
    All inputs 1MΩ‖15pF 300 V RMS CATⅠ
    Cursor Measurements
    Manual, Track and Auto Measure modes
