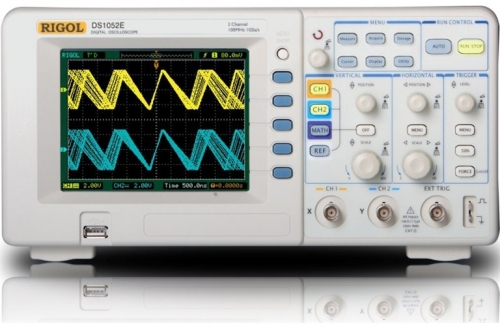

Rigol DS1052E 50MHz 2 CHANNEL Digital Oscilloscope
SKU: DS1052E
Stock: 0
Stock: 0
Price:
$329.00
Rigol DS1052E
50 MHz Digital Oscilloscope with 2 channels plus USB storage and connectivity and 1 GSa/sec sampling.
Features
- 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent-time sample rate
- 1Mpts long Memory Depth
- Ultra compact design: 303mm x 154mm x 133mm (WxHxD)
- 64 k TFT color LCD, bright and vivid waveform display
- Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate
- Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger
- 20 automatic measurements
- Cursor measurements: Manual, Track and Auto Measure modes
- 10 waveforms, 10 setups, BMP and CSV storage
- Math functions:+, -, x, FFT, Invert
- Special digital filter and waveform recorder
- Built-in hardware frequency counter
- Standard interface: USB Device, USB Host, RS-232
- Standard configuration: PassIFail test, effectively avoid electromagnetic interference by using photoelectricity-isolation
- Multi-language user interface, built-in help system
- Direct print to PictBridge compatible printers via USB Device interface.
- 50 MHz Bandwidths
- Ultra compact design: 303mm x 154mm x 133mm (WxHxD)
SEE LINKS BELOW FOR VIDEOS
|
Model
|
||||
|
Bandwidth
|
100 MHz
|
50 MHz
|
||
|
Analog Channels
|
2
|
|||
|
Vertical Sensitivity
|
2 mV/div - 10V/div
|
|||
|
Real-time Sample Rate
|
1 GSa/s（each channel），500 MSa/s（dual channels）
|
|||
|
Equivalent Sample Rate
|
25 GSa/s
|
10 GSa/s
|
||
|
Memory Depth
|
Mode
|
capture rate
|
common
|
long memory
|
|
one channel
|
1 GSa/s
|
16 kpts
|
N/A
|
|
|
500 MSa/s
|
16 kpts
|
1 Mpts
|
||
|
dual channels
|
500 MSa/s
250 MSa/s
or less |
8 kpts
8 kpts
|
N.A.
512 kpts
|
|
|
Standard Interface
|
USB Host & Device, RS-232, P/F Out
|
|||
|
Vertical Resolution
|
8 bits
|
|||
|
Math
|
＋, －, ×, FFT
|
|||
|
Max Input Voltage
|
All inputs 1MΩ‖15pF 300 V RMS CATⅠ
|
|||
|
Cursor Measurements
|
Manual, Track and Auto Measure modes
|
|||
