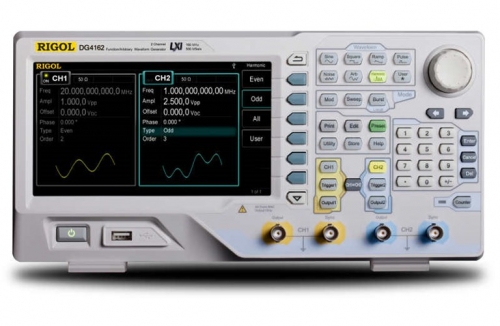

60 MHz Arbitrary Function Generator with 7" full color graphical front panel display and LAN & USB interfaces standard
As Rigol's newest waveform generator, the DG4000 series is part of a new family of fast, easy-to-use, ultra-modern testing instruments. DG4000 is a multifunctional generator that helps accomplish a range of testing by combining many functions into one instrument. Functions include Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, and Analog/Digital Modulation and Counting. The DG4000 utilizes Direct Digital Synthesizer (DDS) technology, which delivers stable, precise, low distortion signals. The sleek new design features a high resolution 7” display screen, while user-friendly interface design and panel layout improves efficiency.
Generators / Counters/Function Generator Template |
|
---|---|
Channels | 2 |
Frequency Maximum | 60 Mhz |
Frequency Minimum | 1 uHz (0.000001 Hz) |
Functions | Burst, Noise, Other, Pulse, Ramp, Sine, Square, Sweep |
Max Amplitude Vpp @ 50 ohms | 10 V |
Arbitrary | Yes |
Sample Rate | 500 MSa/S |
Screen Type | TFT |
Color Screen | No |
Triggering | Yes |
Counter that displays frequency on screen. | Yes |
Modulation Types | AM, FM, FSK, PSK, PWM |
Graphical Display | Yes |
Memory | 16 kB |
Direct Digital Synthesis (DDS) | Yes |
PC Based | No |
Global Attributes |
|
Unique Features | Harmonic Waveforms |
Warranty | 3 YEARS |
Calibration Included | Factory Calibration |
Power Supply Voltage | 120V/220V Universal |
Safety Approval | CE |
Data Logging | No |
Interfaces I/O | LAN/Ethernet, LXI, USB Host, USB |
Product Height | 6.3 IN |
Product Length | 4.6 IN |
Product Width | 12 IN |
Shipping Weight | 7 LBS |
ECCN Number | EAR 99 |
Country of Origin | China |
Shipping Height | 8.5 IN |
Shipping Length | 13.7 IN |
Shipping Width | 17.2 IN |
Model | DG4062 |
Channels | 2 |
Frequency | 60 MHz |
Sample Rate | 500 MSa/s |
Waveform Length | 16 Kpts |
Vertical Resolution | 14 bits |
Display Type | 7 inches TFT WVGA(800X480) |
Model | DG4162 | DG4102 | DG4062 |
Channels | 2 | 2 | 2 |
Frequency | 160 MHz | 100 MHz | 60 MHz |
Sample Rate | 160 MHz | ||
Waveform Length | 16 Kpts | ||
Vertical Resolution | 14 bits | ||
Display Type | 7 inches TFT WVGA(800X480) |
