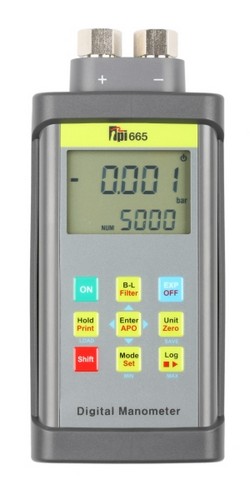

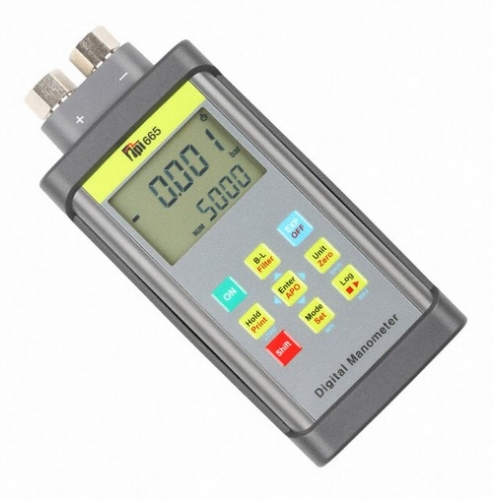

TPI 665 Dual Input Differential Digital Manometer with Data Logging

SKU: TPI 665
Stock: 0

Qty: - +
   - OR -


Product Features


  • Two 1.5 Volt Alkaline Battery (A002);
  • Protective Boot w/ magnets (A614);

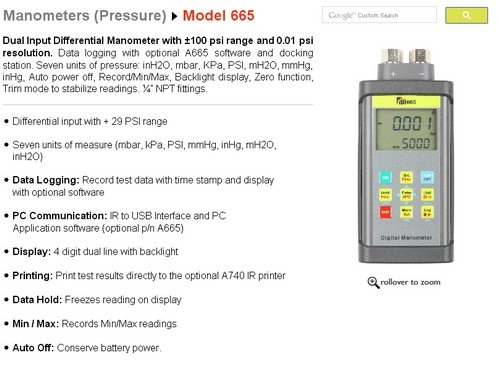

Dual Input Differential Manometer with ±100 psi range and 0.01 psi resolution. Data logging with optional A665 software and docking station. See picture above.  Seven units of pressure: inH2O, mbar, KPa, PSI, mH2O, mmHg, inHg, Auto power off, Record/Min/Max, Backlight display, Zero function, Trim mode to stabilize readings. 1/4" NPT fittings


  • Differential input with + 29 PSI range;
  • Seven units of measure (bar, kPa, PSI, mmHg, inHg, mH2O, inH2O).;
  • Data Logging - Record test data with time stamp and display with option-al software.;
  • PC Communication: IR to USB Interface and PC Application software(optional p/n A665);
  • Printing - Print test results directly to the optional A740 IR printer;
  • Display - 5 digit dual line with backlight;
  • Data Storage - Save up to 16 readings.;
  • Min / Max - Records Min/Max readings;
  • Auto Off - Conserve batteries.;

Product Details and Specifications

Measurement Range: ±101.5 psi (±7bar)
Display: 4 digit dual line with backlight
Input Type: Differential (1/4" NPT)
Resolution (max): 0.01 psi (0.001 bar) (0.1 inH2O)
Accuracy: 0.2% Full scale
Repeatability: 0.1% Full scale
Mean Temperature Coefficient: 0.1% of reading per ºC
Functions: One Touch Zero, Data Hold, Back-light, Unit Selection, Data Logging, Auto power Off, Min / Max Record,
Resolution Selection
Units of Measure: 7Units (bar, kPa, PSI, mmHg, inHg, mmH2O, inH2O)
Data logging: 5000 Data, 1sec ~ 24 hour.
Data Storage: 16 data points
Communication: IR to USB Interface and PC Application software (optional p/n A665)
Battery Type: AA(1.5V)*2 alkaline (MN1500, LR6)
Battery Life: 600hour (Typical)
Auto Power Off: 20 minutes (can be disabled)
