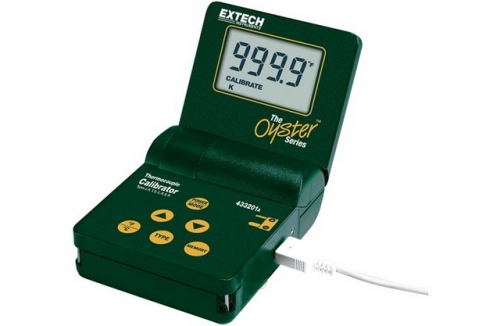

Extech 433201 Multi-Type Calibrator Thermometer

SKU: Extech- 433201
Stock: 0
Price:
$331.41

Qty: - +
   - OR -
Multi Type Calibrator Thermometer Details

Multi-Type Calibrator Thermometer has the ability to source out and measure up to eight thermocouple type devices including C, E, J, K, N, R, S, and T.

This calibratoassures that you always get the maximum accuracy possible to 0.15% of readings that are taken over a wide range. This high accuracy calibration function can simulate thermocouple outputs very precise and can be used with calibrating thermometers, controllers, transmitters or recorders.

Upgraded versions of this Extech device also comes with touch keypad that can make your work just that little bit easier. The new super large LCD display that shows you the readings that have been taken easily fits into the adjustable cover that can easily be removed and replaced if it should get damaged during usage.

The settings of your thermocouple device can be adjusted to your heart’s content to suit the conditions in which you are working. It can be changed to display the recordings in either degrees Celsius or Fahrenheit or displayed in mV on the built in thermocouple tables. The versatile built in thermometer also has the ability to measure a wide range of temperatures.

What's In The BoxSpecifications

  • Type K Thermocouple Calibration Cable
  • Copper Calibration Cable
  • 9V NiCad Rechargeable Battery
  • Neckstrap for hands-free operation
  • AC Adaptor/Charger
  • Case
General Specifications
Type J
Calibrate & Measure -58 to 1830°F (-50 to 1000°C)
Resolution 0.1° to 999.9° 1° above 999.9°
Accuracy ±(0.15% rdg + 1.8° For 1°C)
Type K
Calibrate & Measure -58 to 2498°F (-50 to 1370°C)
Resolution 0.1° to 999.9° 1° above 999.9°
Accuracy ±(0.15% rdg + 1.8° For 1°C)
Type T
Calibrate & Measure -184 to 752°F (-120 to 400°C)
Resolution 0.1° to 999.9° 1° above 999.9°
Accuracy ±(0.15% rdg + 1.8° For 1°C)
Type E
Calibrate & Measure -58 to 1382°F (-50 to 750°C)
Resolution 0.1° to 999.9° 1° above 999.9°
Accuracy ±(0.15% rdg + 1.8° For 1°C)
Type C
Calibrate & Measure 32 to 4172°F (0 to 2300°C)
Resolution 1.0°
Accuracy ±(0.15% rdg + 1.8° For 1°C)
Type R
Calibrate & Measure 32 to 3182°F (0 to 1750°C)
Resolution 1.0°
Accuracy ±(0.15% rdg + 1.8° For 1°C)
Type S
Calibrate & Measure 32 to 3182°F (0 to 1750°C)
Resolution 1.0°
Accuracy ±(0.15% rdg + 1.8° For 1°C)
Type N
Calibrate & Measure -58 to 2372°F (-50 to 1300°C)
Resolution 1.0°
Accuracy ±(0.15% rdg + 1.8° For 1°C)
Voltage -5.00mV to +55.00mV 10 μV ±(10 μV + 1 digit)
Cold junction compensation 0.03°C/°C (0.02°F/°F)
Input impedance 10M Ω
Sampling time 4 times / second
Display 4 digit LED


Extech 433201 Product Specifications Summary:

Process / Calibration/Temperature Calibration/RTD Calibrators Template

Accuracy 0.15% rdg ±1°
NIST Calibration No

Test Equipment General Attributes

Warranty 1 YEARS
Calibration Included Factory Calibration
Power Supply Voltage Battery Powered
Safety Approval CE
Battery Type Other
ECCN Number EAR99
