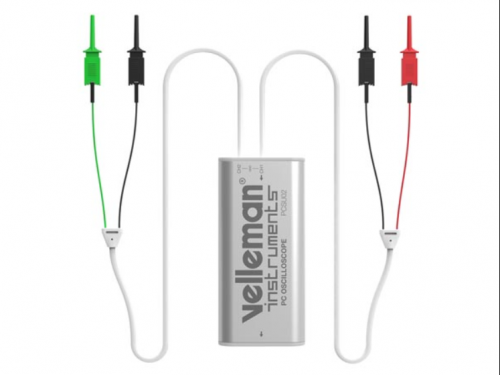

VELLEMAN PCSU02 MINI 2 CHANNEL USB PC SCOPE

SKU: PCSU02
Stock: 0
Price:
$79.95

Qty: - +
   - OR -

Oscilloscopes are expensive and complicated instruments? Not this one!
This small and easy to use 2 channel oscilloscope has all the features of a full blown oscilloscope and it also has a bandwidth of 500 kHz ±3 dB!

Complete with instructions (download), test leads and software (download) and it comes in a design enclosure.

Features

  • test leads
  • software download
  • USB cable included
  • design enclosure

Specifications

  • oscilloscope:
    • bandwidth: DC to 2 x 500 kHz ±3 dB
    • input impedance: 100 kO /20 pF
    • maximum input voltage: 30 V(AC + DC)
    • time base: 5 µs to 500 ms per division
    • input range: 100 mV to 5 V/division
    • input sensitivity: 3 mV display resolution
    • readouts: true RMS, dBV, dBm, p to p, Duty cycle, Frequency…
    • record length: 2 x 1k samples
    • sampling frequency: 50 Hz to 2.5 MHz
    • sample history function
    • auto set-up function
    • pre-trigger function: on 50 µs/div .. 500 ms/div ranges
    • persistence options: colour graded, variable and infinite
  • spectrum analyzer:
    • frequency range: 0 .. 125 Hz to 125 kHz
    • operating principle: FFT (Fast Fourier Transform)
    • FFT resolution: 512 lines
  • transient recorder:
    • timescale: 20 ms/div to 2000 s/div
    • max. recording time: 9.4 h/screen
    • automatic storage of data
    • record and display of screens
    • max. number of samples: 100/s
    • min. number of samples: 1 sample/20 s
  • general information:
    • markers for: amplitude/voltage and frequency/time
    • input coupling: DC and AC
    • 8 bit resolution
    • storage of display and data
    • dimensions: 85 x 40 x 14 mm
  • minimum system requirements:
    • Windows® XP, Vista, 7, 8 and 10
    • mouse (or mouse pad)
    • free USB port 1.1 or 2.0
