VELLEMAN PCGU01 PC USB Miniature Function Generator is simple to use

SKU: PCGU01
Stock: 0
Price:
$79.97

Qty: - +
   - OR -
AUTHORIZED DISTRIBUTOR

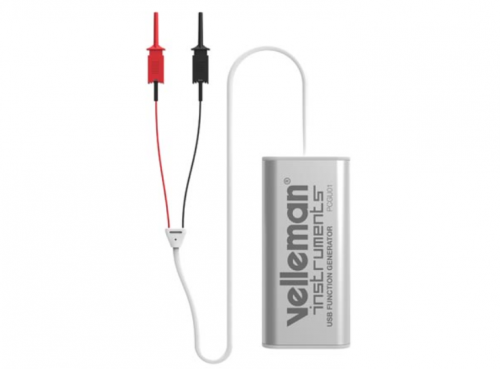

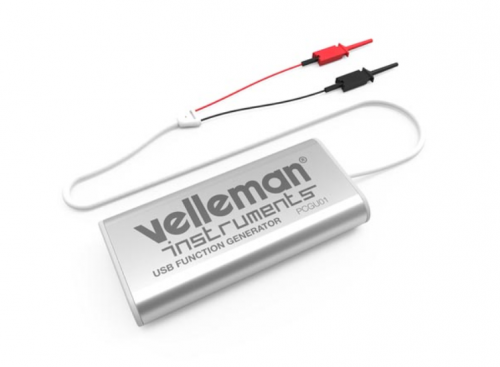

The new PC USB miniature function generator is simple to use and has a frequency range of up to 1 MHz!


This nifty measuring instrument can generate sine, square and triangle waveforms, and it has a DAC resolution of 10 bits. To top things off, it has an output of 0.2 Vpp to 10 Vpp.

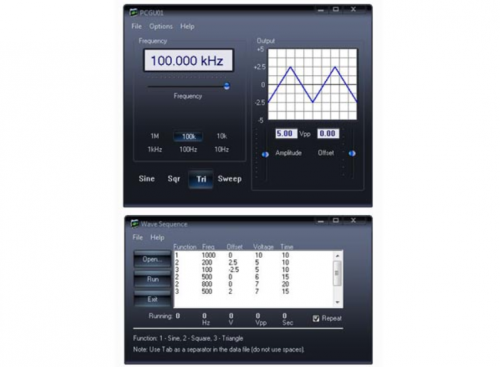

Download the dedicated Windows® software and control the various signals. Among other things, the software includes a handy automated wave sequence generator.

Features:

  • dedicated Windows® software to control the various signals (free download)
  • software includes an automated wave sequence generator
  • design enclosure
  • test leads
  • free software download
  • USB cable

Specifications:

  • DAC resolutions: 10 bits
  • frequency range: sine, triangle form 1 Hz to 1 MHz, square wave 1 Hz to 100 kHz
  • frequency setting resolution: 0.04 Hz
  • sweep function
  • amplitude range: 200 mVpp to 10 Vpp @ 1 kHz // no load / 0 V offset
  • amplitude range with offset: 200 mVpp to 7.5 Vpp @ 1 kHz // no load / -2.5 V to +2.5 V offset
  • offset range : from 0 to -2.5 V or +2.5 V max. (resolution 0.5% of full scale)
  • waveforms: sine, square and triangle
  • typical sine wave distortion (THD): < 0.02% @ 1 kHz / 0 dB / 600 Ohm
  • square wave rise/fall time: < 0.2 µs
  • output impedance: 50 Ohm
  • note: PC USB ground is connected to GND output
  • minimum system requirements:
    • Windows® XP, Vista, 7, 8, 10
    • mouse or touchpad
    • free USB port 1.1 or 2.0
