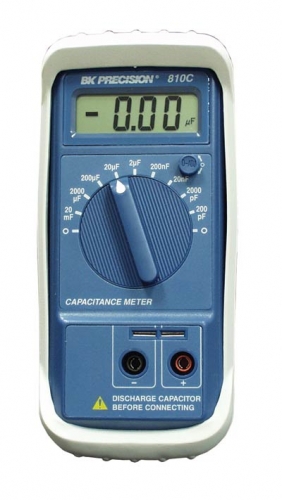

BK 810C Compact Capacitance Meter to 20 mF

SKU: BK 810C
Stock: -4

Price:

$83.00

Features:

    - Zero adjustment knob
    - Capacitor test sockets
    - Fuse protected

Specifications

CAPACITANCE
RANGE (Best Resolution)	200pF (0.1pF), 2nF (1 pF), 20nF (10pF), 200nF (100pF), 2uF (1nF), 20 uF (10nF), 200uF (100nF), 2000uF (1uF),20mF (10uF)
ACCURACY	+-(0.5% rdg + 1 dgt + 0.5pF), +-(0.5% rdg + 1 dgt), +-(0.5% rdg + 1 dgt), +-(0.5% rdg + 1 dgt), +-(0.5% rdg + 1 dgt), +-(0.5% rdg + 1 dgt), +-(0.5% rdg + 1 dgt), +-(2% rdg + 1 dgt), +-(2% rdg + 1 dgt)
General
POWER SOURCE	9V Battery
BATTERY LIFE	200 hours typ. (alkaline)
DISPLAY	3 1/2 digit LCD
DIGIT HEIGHT	0.86'' (22mm)
OPERATING TEMPERATURE	32 0 to 104 0 F (0 0 to 40 0C)
STORAGE TEMPERATURE	14 0 to 140 0F, < 70% RH (-10 0 to 60 0C)
DIMENSIONS (LxWxD)	5.7x3.0x1.6'' (143x74x39 mm)
WEIGHT	10 oz. (267g)
One Year Warranty
Accessories
SUPPLIED	Test Leads, Manual, Battery
OPTIONAL	TL-8 SMD Probe
CARRYING CASE	(Not included) LC-29B
* > 2mF, NO Spec. ** 59 0 to 95 0 F (15 0 to 35 0C) for specified accuracy
Additional Specifications
EXCITATION VOLTAGE	3.2 V Max
ZERO ADJUSTMENT RANGE	+ 20 pF typical
PROTECTION	Input protected by 1/4A, 250 Fuse
MEASUREMENT RATE	2 per second, nominal
