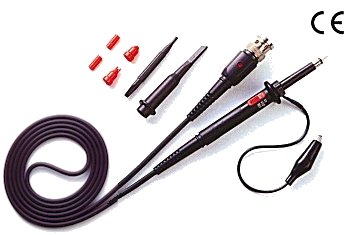

HP-9060 OSCILLOSCOPE PROBE-60 MHz

INSULATED SCOPE PROBE 60 MHz Features complete probe set safety: conform with IEC-1010 cat II attenuation: 1:1 or 1:10 Specifications position x1: attenuation: 1:1 bandwidth: DC to 15 MHz rise time: 23.3 ns input resistance: 1 Mohm (input resistance scope) input capacitance: 46 pF + cap. scope working voltage: 600 VDC incl. peak AC derating with frequency position REF: - position x10: attenuation: 1:10 bandwidth: DC to 60 MHz rise time: 5.8 ns input resistance: 10 Mohm (if scope input = 1 Mohm) input capacitance: ± 15 pF working voltage: 600 VDC incl. peak AC derating with frequency compensation range: 10 to 50 pF cable length: 4 ft remarks: with insulated BNC connector
