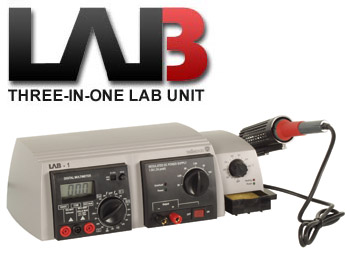

LAB1U VELLEMAN THREE-IN-ONE LAB UNIT

Features

• contents: 1 multimeter, 1 power supply & 1 soldering iron
• this unit covers 99% of your home lab needs
• perfect solution for starters or schools

Specifications

• digital multimeter:
  • 3 1/2 backlit LCD
  • automatic polarity indication
  • DC voltage: 200mV to 600V in 5 steps
  • AC voltage: 200V and 600V
  • DC current: 200µA to 10A in 5 steps
  • resistance test: 200 ohm to 2Mohm
  • diode, transistor and continuity test
  • data-hold function and buzzer
  • CATI 600V
  • CATII 300V
• regulated power supply:
  • selectable output voltages: 3 - 4.5 - 6 - 7.5 - 9 - 12Vdc
  • output: 1.5A (2A peak)
  • LED overload indication
  • with output on/off switch
  • very low ripple
  • LED power indication
• soldering station:
  • low-voltage iron: 24V
  • ceramic 48W heating element with temperature sensor
  • temperature range: OFF - 150 - 450°C
  • lead-free soldering possible
  • supplied with sponge and spare bit
