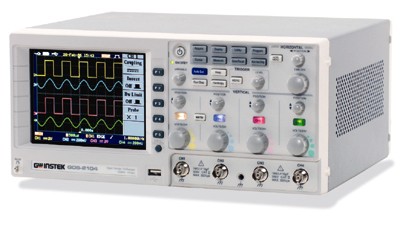

Instek GDS-2102 Series 100MHz Digital Storage Oscilloscope 2 Channel

SKU: GDS-2102
Stock: 0
Price:
$1130.00

Qty: - +
   - OR -

Instek GDS-2102 Series 100MHz Digital Storage Oscilloscope 2 Channel

The GDS-2000 Series, carrying bandwidths of 200MHz, 100MHz and 60MHz and inputs of 2 and 4 channels, makes up a family of 6 members in total. The combination of 1GSa/s real-time sampling rate (25GSa/s for ET sampling) and 25k point’s record length of the GDS-2000 Series provides the highest value platform among all equivalent products available in today's market. The 27 Auto Measurement functions, FFT measurement, Advanced Triggering, 12 Division Horizontal Display, Time Clock, Frequency Counter, Go/NoGo, Multi-Language Screen Menu, On-Line Help, Setup Sequence and a Lifetime Warranty* are all standard features of the GDS-2000 Series.

Features

* 200/100/60 MHz Bandwidth
* 2/4 Input Channels
* 1GSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
* Maximum 25k Points Record Length
* Large 5.6-in TFT Color Display
* USB Host/Device: USB Printer and USB Flash Drive Supported
* Battery Operation (optional)
* Color Printout


GDS-2062/2064
GDS-2102/2104
GDS-2202/2204
VERTICAL
Channels
2 / 4
2 / 4
2 / 4
Bandwidth
DC ~ 60MHz (-3dB)
DC ~ 100MHz (-3dB)
DC ~ 200MHz (-3dB)
Rise Time
5.8ns Approx.
3.5ns Approx.
1.75ns Approx.
Sensitivity 2mV/div ~ 5V/div (1-2-5 increments)
Accuracy ±(3% x |Readout|+0.05 div x Volts/div+0.8mV)
Input Coupling AC, DC & Ground
Input Impedance 1MΩ±2%, ~16pF
Polarity Normal & Invert
Maximum Input 300V (DC+AC peak), CATII
Waveform Signal Process + , - , FFT
Offset Range

2mV/div ~ 20mV/div : ±0.5V
50mV/div ~ 200mV/div : ±5V
500mV/div ~ 2V/div : ±50V
5V/div : ±300V
Bandwidth Limit 20MHz (-3dB)
TRIGGER
Sources CH1 , CH2 , CH3 , CH4 , Line
Modes Auto-Level, Auto, Normal, Single, TV, Edge, Pulse Width
Coupling AC , DC , LF rej. , HF rej. , Noise rej.
Sensitivity DC ~ 25MHz : Approx. 0.5div or 5mV
25MHz ~ 200MHz : Approx. 1div or 10mV
HORIZONTAL
Range 1ns/div ~ 10s/div (1-2-5 increments)
ROLL : 250ms/div ~ 10s/div
Modes Main, Window, Window Zoom, Roll, Scan, X-Y
Accuracy ±0.01%
Pre-Trigger 20 div maximum
Post-Trigger 1000 div
X-Y MODE
X-Axis Input Channel 1
Y-Axis Input Channel 2
Phase Shift ±3° at 100kHz
SIGNAL ACQUISITION
Real-Time Sample Rate 1GSa/s maximum
Equivalent Sample Rate 25GSa/s maximum
Vertical Resolution 8 Bits
Record Length 25K Points maximum
Acquisition Mode Normal, Peak Detect, Average
Peak Detection 10ns
Average 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
CURSORS AND MEASUREMENT
Voltage Measurement Vpp , Vamp , Vavg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot
Time Measurement Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle
Delay Measurement Eight types of delay measurement
Cursors Measurement Voltage difference between cursors (ΔV) Time difference between cursors (ΔT)
Auto Counter


Resolution : 6 digits
Accuracy : ±2%
Signal Source: All available trigger source except the Video trigger mode

CONTROL PANEL FUNCTION
Autoset Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level
Save Setup Up to 20 sets of measurement conditions
Save Waveform 24 sets of waveform
DISPLAY
TFT LCD Type 5.6 inch
Display Resolution 234 (Vertically) x 320 (Horizontally) Dots
Display Graticule 8 x 10 divisions ; 8 x 12 divisions (menu off)
Display Brightness Adjustable
INTERFACE
Go/NoGo Output 5V Maximum/10mA TTL Open Collector Output
RS-232 Interface DB 9-pin male DTE RS-232 interface
GPIB Interface (Option) Fully programmable with IEEE 488.2 compliance
USB USB Host/Device 2.0 full speed supported
POWER SOURCE
Line Voltage Range AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
Battery Power(Option)

Battery : 10.8V Li-Ion battery pack
Charge Time : 8 hours (Power ON)
Operating Time : 3 hours , depending on operating condition
MISCELLANEOUS
Multi-Language Menu Available
Online Help Available
Time Clock Time and Date, Provide the Date/Time for saved data
DIMENSIONS & WEIGHT
  310(W) x 142(H) x 254(D) mm; Approx. 4.3kg
