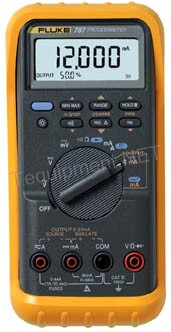

Fluke 787 ProcessMeter

SKU: Fluke 787
Stock: 0
Price:
$750.00

Qty: - +
   - OR -

The Fluke 787 Process Meter was the first tool to combine a loop calibrator with a fully-functional 1000V True RMS digital multimeter to give process technicians double the power in one tool.

A maintenance and calibration tool that will be at home in every instrumentation technician's tool box, the Fluke 787 Process Meter combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. Based on the trusted Fluke 87 DMM, the Fluke 787 adds the ability to measure, source, and simulate dc loop current with 0.05% accuracy and 1 microamp resolution.

Put it all together and you have the ideal tool for troubleshooting and calibrating current loop applications. So if you're tired of always tracking down a calibrator, lugging around two tools and switching back and forth, get the single best solution for doubling your power - the Fluke 787 ProcessMeter.

Also see the Fluke 789 ProcessMeter

What's Included:

  • Alligator Clips
  • Protective Yellow Holster with test lead storage
  • One 9V alkaline battery
  • Fluke TL75 Safety-Designed Test lead Set
  • Product over and Users Manual (CD-ROM) in 14 languages

FEATURES

  • Auto (Touch) Hold
  • Auto Power Off
  • Auto Ramp
  • Auto Ranging
  • Auto Step
  • Backlight
  • Continuity
  • Counts 30000
  • Counts 30000 counts
  • Current AC ac amps: 440ma
  • Current DC dc amps: 1a
  • Diode Test
  • Frequency 20
  • Low Battery Indicator
  • Low Input Impedance
  • Manual Ranging
  • Min/Max min/max
  • Min/Max
  • Relative Mode / Zero
  • Resistance 40
  • Source 4-20 mA
  • True RMS
  • Voltage AC ac volts: 1000
  • Voltage DC dc volts: 1000

SPECS

Battery Life 50 hours typical (measurement), 12 hours typical (sourcing 12 ma)
Battery Type 4x aa
CAT III Rating 1000v
Current AC Accuracy 1.00%
Current DC Accuracy 0.20%
Current mA DC Accuracy 0.05%
Dimensions 32 x 87 x 187 mm
Operating Temperature -20 °c to +55 °c
Resistance Accuracy 0.20%
Storage Temperature -40 °c to +60 °c
Voltage AC Accuracy 0.70%
Voltage DC Accuracy 0.10%
Warranty 3 years
Weight 369 g
