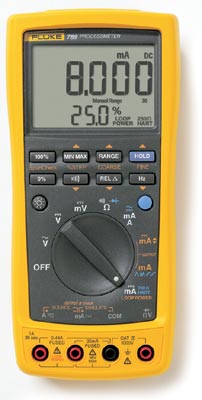

Fluke 789 ProcessMeter

SKU: Fluke 789
Stock: 0
Price:
$859.00

Qty: - +
   - OR -

Safety rated multimeters with mA source.

Now process technicians can do a lot more while carrying a lot less.  The ultimate loop calibration multimeter – the Fluke 789 ProcessMeter. The Fluke 789 ProcessMeter was the first tool to combine a loop calibrator with a DMM to give process technicians double the power in one tool.

The Fluke 789 has a display that’s not only twice as large, but also twice as bright with two levels of backlighting.The Fluke 789 has a 24-Volt loop supply reducing the need for taking a separate power supply when doing offline transmitter testing. And with its built-in, selectable 250-Ohm Hart® resistor, it also eliminates the need to carry a separate resistor with you.


For a lower price look at the Fluke 787 ProcessMeter




What's Included:

  • Fluke TL71 Premium Safety-Designed Test Lead Set plus alligator clips
  • Four AA alkaline batteries (installed)
  • Product overview and users manual (CD-ROM) in 14 languages

FEATURES

  • 24V DC Loop Supply
  • Auto (Touch) Hold
  • Auto Power Off
  • Auto Ranging
  • Backlight
  • Continuity
  • Counts 30000
  • Counts 30000 counts
  • Current AC ac amps: 440ma
  • Current DC dc amps: 1a
  • Diode Test
  • Frequency 20
  • Low Battery Indicator
  • Low Input Impedance
  • Manual Ranging
  • Min/Max min/max
  • Min/Max
  • Relative Mode / Zero
  • Resistance 40
  • Software
  • Source 4-20 mA
  • True RMS
  • Voltage AC ac volts: 1000
  • Voltage DC dc volts: 1000

SPECS

Battery Life 50 hours typical (measurement), 12 hours typical (sourcing 12 ma)
Battery Type 4x aa
CAT III Rating 1000v
CAT IV Rating 600v
Current AC Accuracy 1.00%
Current DC Accuracy 0.20%
Current mA DC Accuracy 0.05%
Dimensions 32 x 87 x 187 mm
Operating Temperature -20 °c to +55 °c
Resistance Accuracy 0.20%
Storage Temperature -40 °c to +60 °c
Voltage AC Accuracy 0.70%
Voltage DC Accuracy 0.10%
Warranty 3 years
Weight 369 g
